نام محصول:
پلاگین استوانه ای
نام انگلیسی:

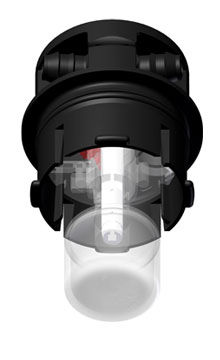

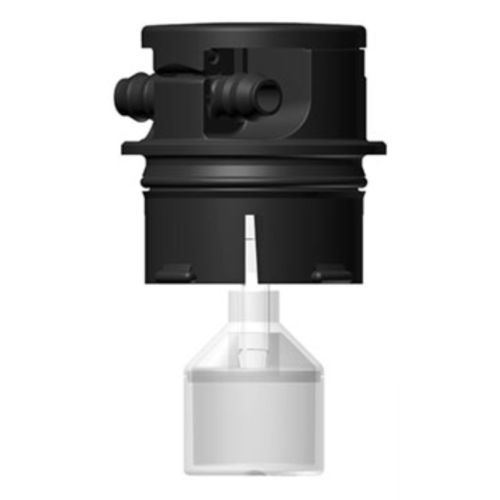

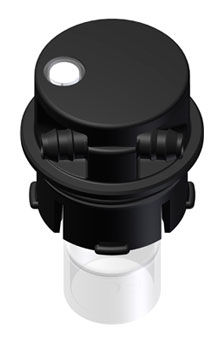

Cylindrical plug A51000
برند:
bfs – batterie füllungs systeme GmbH
مشخصات:
The push-in plug S35 is a compact unit that simply pushes in. All parts on the inside and the outside of the plug housing are fitted as form-locking components. Using no glued or welded connections was a conscious decision. It means that the plug can be disassembled and all its parts recycled at the end of its operating life.
The push-in plug for all lead-acid batteries with a vent size of 35 mm (S35).
Construction height – 21 mm / 0.83″
Min. casing depth – 46 mm / 1.81″
Float action – 4 mm / 0.16″
Filling pressure – min 0,2 bar / 2.9 psi | max. 3,8 bar / 55 psi
Water volume (dynamic) with 6 plugs in series:
0,3 bar / 4.3 psi – 3.49 pt / 1650cm³ per minute
1,0 bar / 14.5 psi – 7.61 pt / 3600cm³ per minute
3,0 bar / 43.5 psi – 14.27 pt / 6750cm³ per minute
توضیحات:
Form
cylindrical
Type
threaded
Material
lead
Function
vent, locking, filling
Product applications
parts, construction, filling
Other characteristics
push-in
