نام محصول:
پست

نام انگلیسی:
Mobile substation SMS-1 Series

برند:
Aktif Muhendislik Dis Tic. AS.

مشخصات:

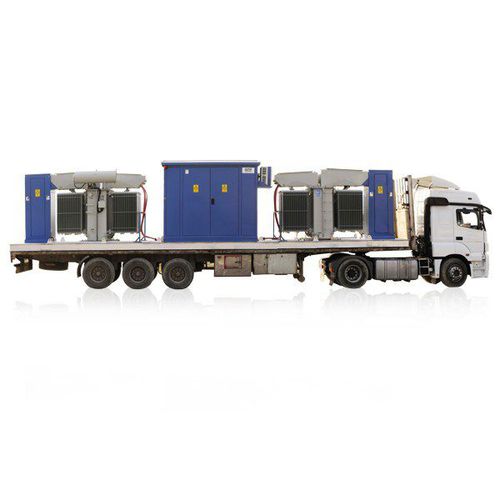

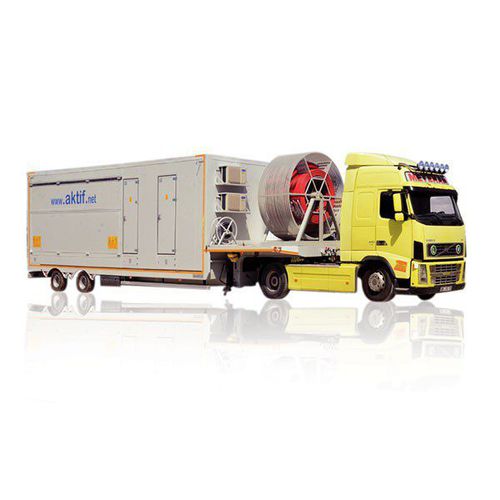

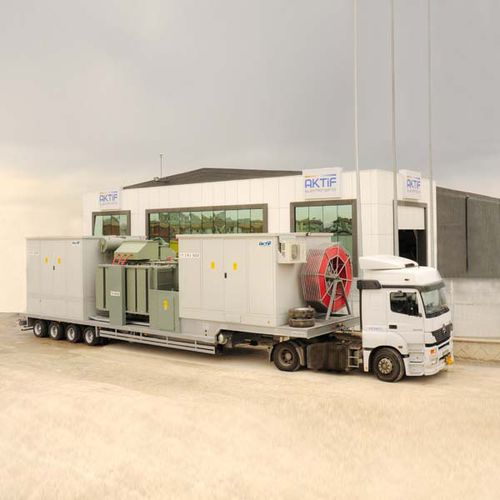

SMS-1 series Mobile Transformer Substations are MV/LV mobile distribution and transformer substations designed for small power generation and distribution. Mobile Substations are specially designed according to the project requirements as trailer, platform / skid, wagon or ship type.

SMS-1 Series Mobile Transformer Substations are specially designed and manufactured up to 4 MVA power , up to 40.5 kV primary voltage and up to 0.69 kV secondary voltage.

Basically, they consist of the following main equipment;

• Medium Voltage Switchgears

• Distribution Transformer

• Low Voltage Distribution Panel

– SCK-1 series Steel Kiosk or SCK-2 series Sandwich Panel Kiosk

3 different solutions are available for primary MV switchgears;

• SNC or SMC series Air Insulated Metal Clad Switchgears

• SME series Air Insulated Metal Enclosed Switchgears

• Gas Insulated Switchgears

Distribution Transformer: Distribution transformers can be used at the voltage level suitable for the project requirements and with a maximum power of 4 MVA. It is possible to use transformers with different connection types as oil type or dry type.

Secondary Low Voltage Distribution panels are designed and manufactured as standard or withdrawable type up to 6000 A according to customer and project requirements.

SCK-1 series Sheet Steel Kiosk or SCK-2 series Sandwich Panel Kiosk dimensions are specifically calculated for the project according to the layout design of in the all types of MV switchgears and LV Panels to be placed in the kiosk.

توضیحات:
Technology
mobile

Fonction
power distribution, for medium-voltage transformers

Options and accessories
outdoor, vehicle-mounted

Rated voltage
0.69 kV, 40.5 kV

Current
4,000 A, 6,000 A
