نام محصول:
پست توزیع برق
نام انگلیسی:
Power distribution substation SPK Series
برند:
Aktif Muhendislik Dis Tic. AS.
مشخصات:

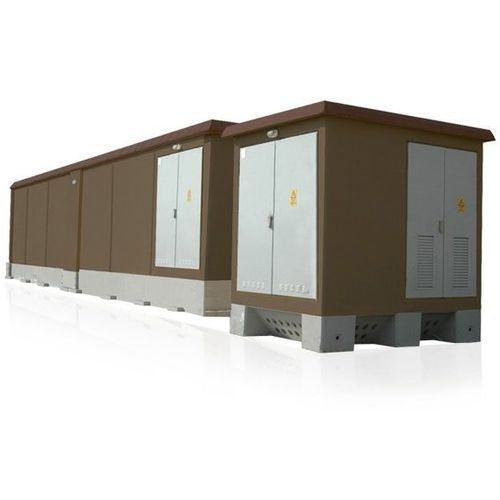

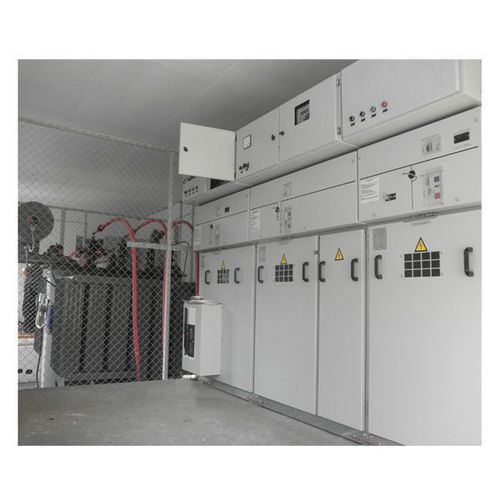

Aktif SPK prefabricated concrete compact substations is transformer and distribution substation manufactured up to 2500 kVA transformer power. SPK E-House / Prefabricated Package Substation are manufactured for outdoor applications like substations electricity distribution, factories, hospitals, power generation plants, renewable power plants and port management solutions. Also SPK prefabricated concrete kiosks can be used with air insulated SME, SNC, SMC series switchgears and with gas insulated switchgears. In addition, SPK gives opportunity for special usages like for low voltage AC-DC panels, protection and control panels, generator and compensation systems, control and signaling centers, engine feeding panels. SPK series concrete kiosk is more useful instead of big transformer structures.
Roof, floor and walls are made of concrete blocks. They can be easily assembled or removed on the kiosk ground specially prepared in the site. In this way, length of SPK can be arrange according to the request. According to TS 500, compressive strength class of concrete is C35. SPK is compatible for nature. Protection class is IP23D against the water and the dust. Aktif SPK prefabricated concrete compact substations can be equipped with fan and air-conditioner as well as natural ventilation according to request. Exterior walls of kiosk are painted with a grainy exterior paint in RAL 9001 and doors are painted with RAL 7035 as standard. It is possible to use different color options according to the project requirements.
توضیحات:
Fonction
power distribution, for medium-voltage transformers
Options and accessories
prefabricated, outdoor, compact
Rated voltage
40.5 kV
Current
3,150 A
