نام محصول:
پرس عدل بندی افقی Albamat 800 V5
نام انگلیسی:

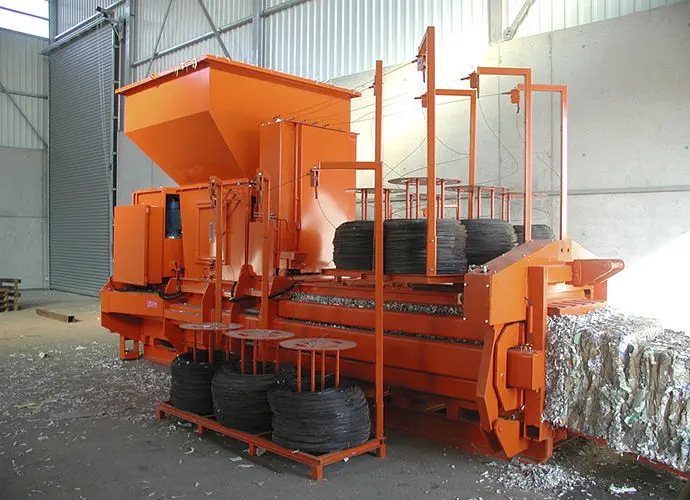

Horizontal baling press Albamat 800 V5
برند:
abba-Pressen Vertriebs GmbH & Co KG
مشخصات:
Orientation
horizontal
Loading
channel
Applications
for cardboard, for paper, for plastics, for film, for bottles
Other characteristics
automatic, mobile
Compression power
800 kN
Bale weight
Min.: 450 kg
(992 lb)
Max.: 650 kg
(1,433 lb)
توضیحات:
80 t pressing force
Suitable for pressing: paper, cardboard, printing waste, foil, hard and soft plastics (PET, HDPE etc), fleece, Aluminium and tinplate cans (Optional)
Low energy consumption due to advantageously crossed press cylinder arrangement (2 press cylinders)
5-fold automatic vertical tying
Vertical stamp, Tank and control cabinet heating and oil-cooler as standard equipment
Ground slide and piston valve for covering the needle opening (prevents contamination of the binding unit with plastic or other small particles, etc.)
Channel adjustment – 3 sides, hydraulic-automatic, 4 working cylinder
4 retaining clamps to retain expanding material in the press channel
Photocell control in the filling chute

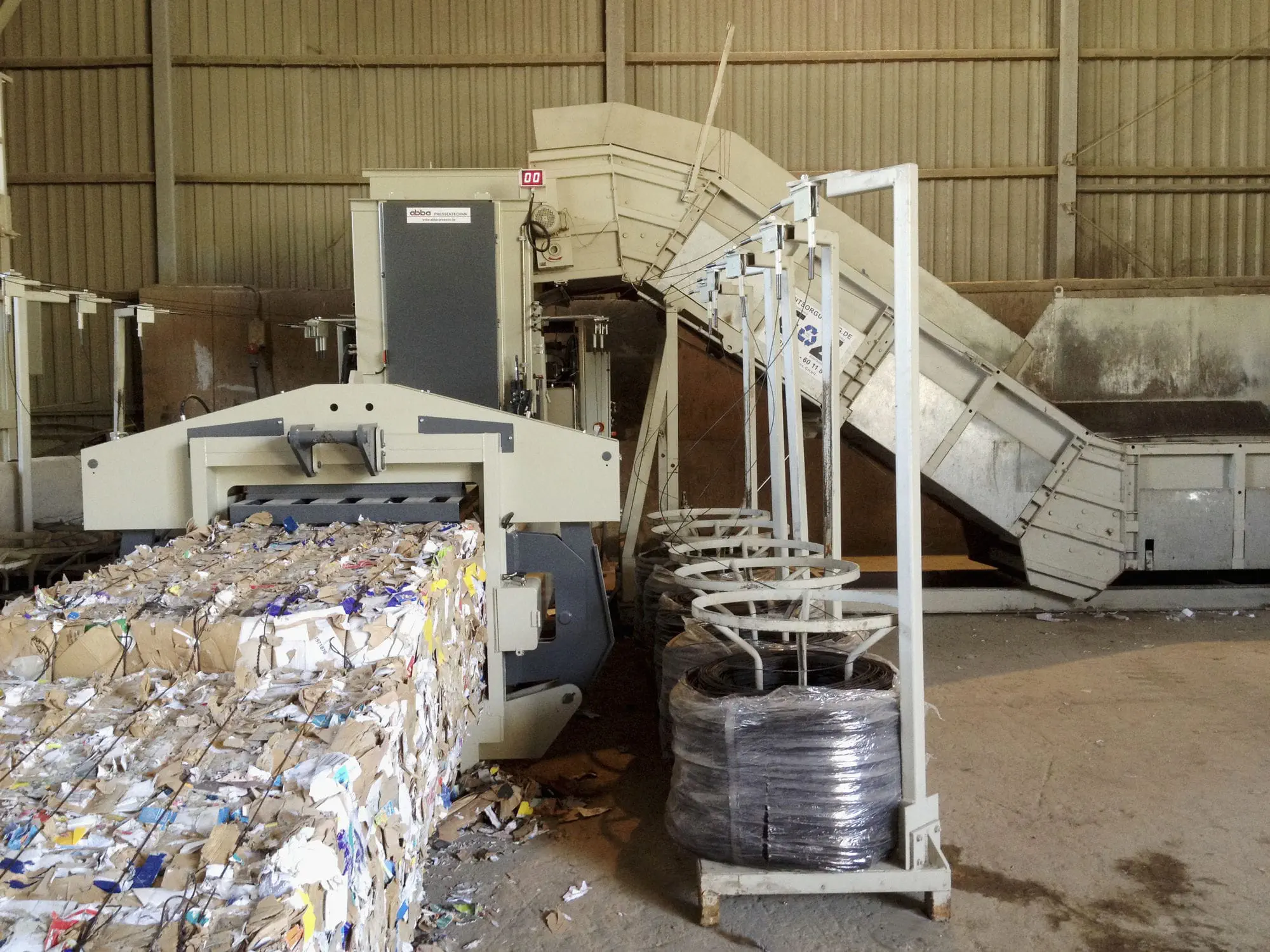

Continuous feeding by conveyor belt or similar
Fast cycle times
Additional photocell for overfilling
Mobile, hook lift according to DIN
Pivoting tying unit for transport and service
Simple and safe operation via 5.7″ touch panel and push button function
10 programs for different materials (paper, foil, plastic, user recipes etc.)
Operator side freely selectable
From motor drive 60 KW machine equipped with Hardox guide (Press piston) incl. wear- and heat-resistant piston guide strips
Hopper as required
Optional: Hardox floor and channel
