نام محصول:

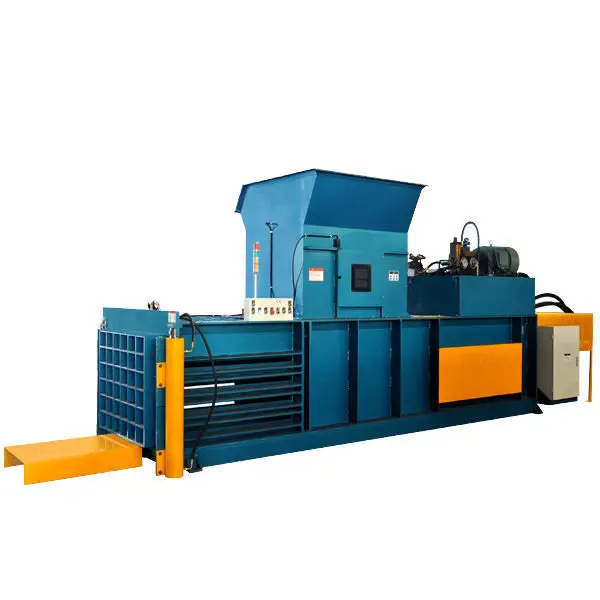

پرس عدل بندی افقی JP100BL

نام انگلیسی:
Horizontal baling press JP100BL

برند:
Zhejiang SUPU Technology Co.,Ltd

مشخصات:
Orientation
horizontal

Loading
channel, top-loading

توضیحات:
HORIZONTAL BALING PRESS / CHANNEL / TOP-LOADING / FOR CARDBOARD BOXES
It is closed type hydraulic baler with lifting open-end door, no need to shift balers timely after package, it can push bags continuously.
* It has high strength output door, hydraulic automatic open-end door, convenient operation and safety.
* It configures with PLC program and electric button control, operated simply and equipped with automatic feeding detection, can compress bale automatically.
* The baling length can be set at random, and provides bundling reminder device.
* Artificial packing, pre-install strapping design, it only thread each wire or bundling rope around bale one time to complete skein, save labor.
* Block size and voltage can be customized according to customers’ reasonable requirements. Bales weight depends on different materials.
* It has three phase voltage and safety interlock device, simple operation, can connect with pipeline or conveyor line to feed material directly, improve working efficiency.
* Oil pipe joint uses cone links without gasket, has no phenomenon of oil leak.
* Adopt unique concave type of multi-point cutter design to improve the cutting efficiency and prolong service life of the cutter.
* German hydraulic technology to save energy and protect environment.
* Adopt the vessel classification of welding process, to ensure the equipment more stable and reliable.

Model：SPW100BL
Hydraulic power：100Ton
Bale size(L*W*H)：1100*1100*（300-1200）mm
Feed opening size（L*W）：1500*1100 mm
Bale Weight ：600-800kg
Bale line ：5line
Out-bale way ：One-off bag out
Power：30KW/40HP
Machine size (mm)：7600*1650*2500
