نام محصول:
پرس عدل بندی افقی Albamat 600 V5
نام انگلیسی:

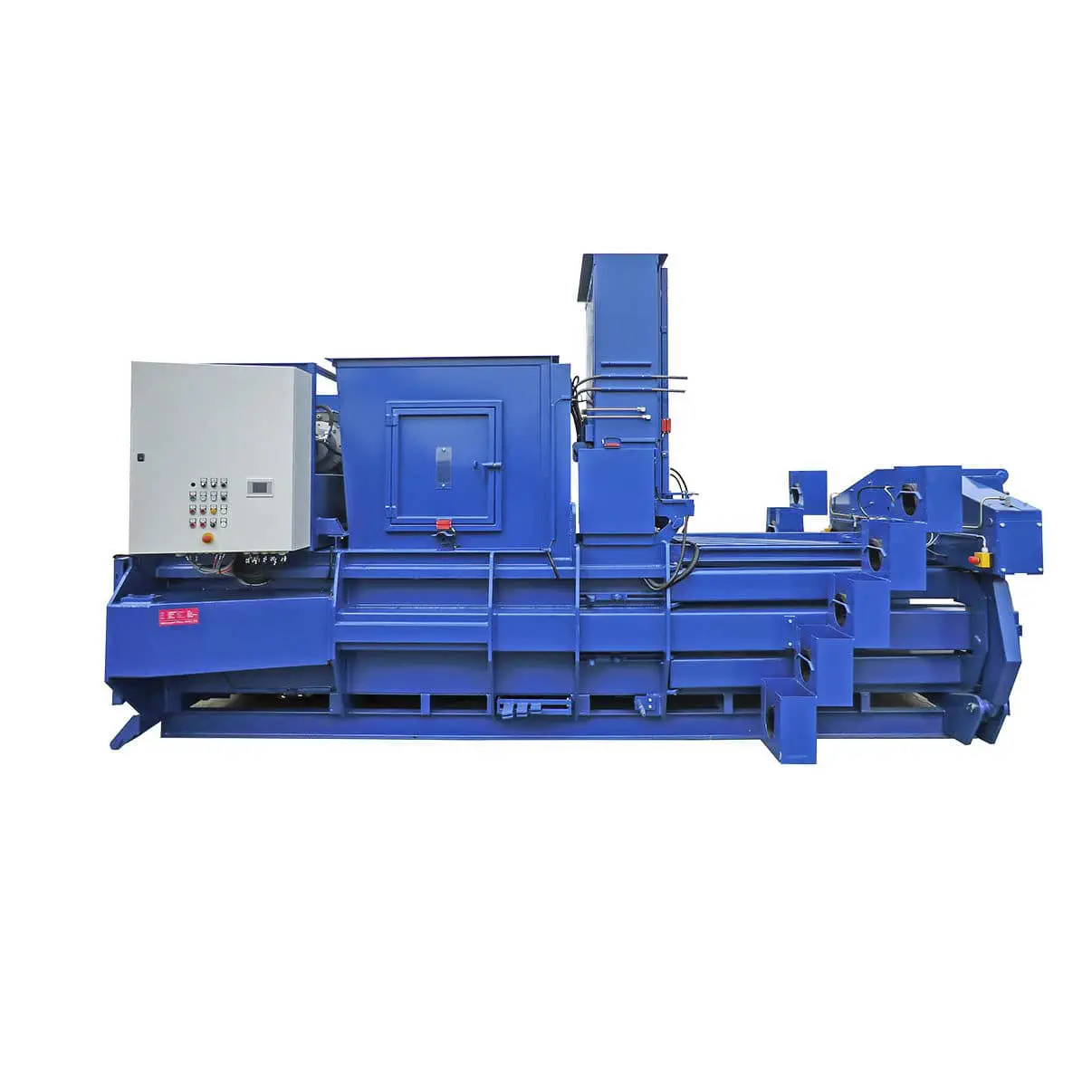

Horizontal baling press Albamat 600 V5
برند:
abba-Pressen Vertriebs GmbH & Co KG
مشخصات:
Orientation
horizontal
Loading
channel
Applications
for cardboard, for paper, for plastics
Other characteristics
automatic, compact, mobile
Compression power
60 tf
Bale weight
Min.: 450 kg
(992 lb)
Max.: 500 kg
(1,102 lb)
توضیحات:
60 t pressing force
Suitable for pressing: paper, cardboard, printing waste, foil, hard and soft plastics (PET, HDPE etc), fleece
Low energy consumption due to advantageously crossed press cylinder arrangement (2 press cylinders)
5-fold automatic vertical tying
Vertical stamp, Tank and control cabinet heating and oil-cooler as standard equipment
Ground slide and piston valve for covering the needle opening (prevents contamination of the binding unit with plastic or other small particles, etc.)
Channel adjustment – 3 sides, hydraulic-automatic, 4 working cylinder
4 retaining clamps to retain expanding material in the press channel
Photocell control in the filling chute
Continuous feeding by conveyor belt etc.
Fast cycle times
Additional photocell for overfilling
Mobile, hook lift according to DIN
Pivoting tying unit for transport and service
Simple and safe operation via 5.7″ touch panel and push button function
10 programs for different materials (paper, foil, plastic, user recipes etc.)
Operator side freely selectable
Hopper as required
