نام محصول:
پدال کنترل
نام انگلیسی:

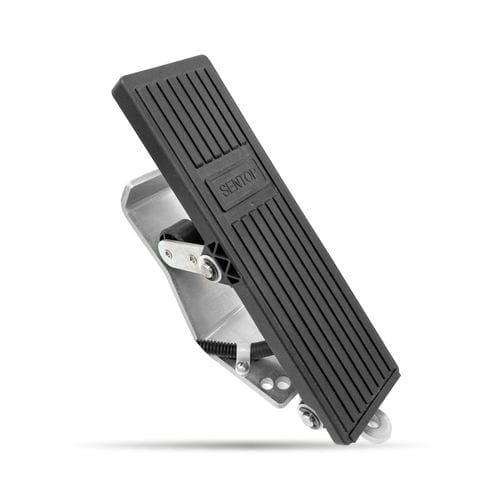

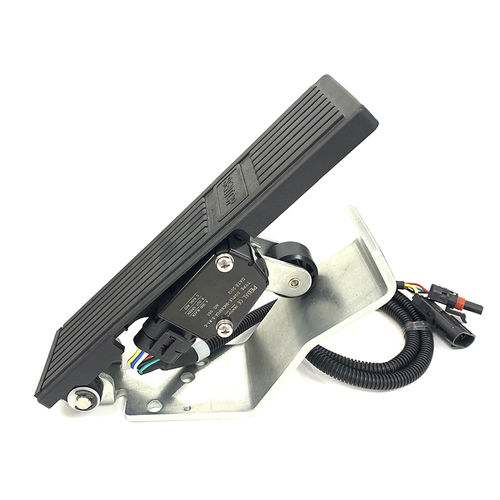

Control pedal HC60FCA
برند:
SENTOP by Shanghai Sibo M&E Co., Ltd.
مشخصات:
HC60FCA Series Pedal
– Hall effect IC Type Low-cost Vibration environment
– Approx. size of base housing: 60mm
– Single signal output, Dual syntropy signal ouput, Dual cross signal output
– Applied voltage 5V, output range 0~5V
– Protection grade IP66
General Specifications
– Operating angle: Approx.17°±2°
– Operating force: 40N~50N
– Mechnical life expectancy: 10,000,000 operations
– Operating temperature range: -40℃~+85℃
– Storage temperature range: -50℃~+120℃
– Protection grade: IP66
Electrical Specifications (Hall effect contactless potentiometer)
– Applied voltage: 5V±10%
– Output signal: 0~5V
– Current consumption (no-load): ≦20mA
– Independent linearity tolearance: ±2%
– Resolution: 4096 (12bit)
– Update rate: 0.3ms
– Insulation resistance: >1000MΩ (500V.D.C) –
– Dielectric strength: 1 min (500V.A.C)
Special Specifications
– PWM
– Available for special outout range.
The pedal can be customized in accordance with your special requirements.
For other special requirements, please contact us at trade1@sakae.cn
توضیحات:
Function
control
Technology
Hall effect, potentiometer
Type
single pedal
Other characteristics
rugged, compact, corrosion-resistant, with cover, IP67
Applications
for vehicles, for railway applications
