نام محصول:

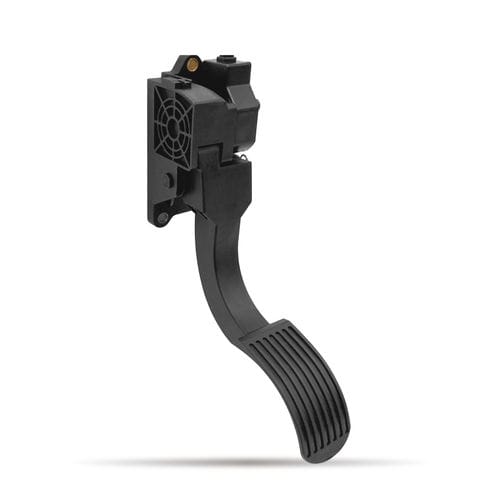

پدال کنترل
نام انگلیسی:
Control pedal HC45FCD
برند:
SENTOP by Shanghai Sibo M&E Co., Ltd.
مشخصات:
HC45FCD Series Pedal
– Hall effect IC Type
– Approx. size of base housing: 45mm
– Single signal output, dual syntropy signal ouput, dual cross signal output
– Input 5V, output 0.5~4.5V; Input 5V, output 0~5V; Input 9~30V, output 0~5V; Input 15~30V, output 0~10V; Input 15~30V, output 4~20mA;
General Specifications
– Operating angle: Approx.17°
– Operating force: 14N~25N
– Mechnical life expectancy: 1,000,000 operations
– Operating temperature range: -40℃~+85℃
– Storage temperature range: -40℃~+85℃
– Viration: 10~55Hz 98m/s2
– Shock: 294m/s2
– Protection grade: IP67
Electrical Specifications (potentiometer)
– Input 5V, output 0.5~4.5V; Input 5V, output 0~5V; Input 9~30V, output 0~5V; Input 15~30V, output 0~10V;
– Load resistance: >100KΩ
– Effective electrical angle: Approx. 60°
– Independent linearity tolearance: ±2%
– Resolution: 4096 (12bit)
– Update rate: 0.3ms
– Insulation resistance: >1000MΩ (500V.D.C) –
– Dielectric strength: 1 min (500V.A.C)
Special Specifications
– PWM, SSI, RS485, CANopen, etc.
The pedal can be customized in accordance with your special requirements.
For other special requirements, please contact us at trade1@sakae.cn
توضیحات:
Function
control, accelerator, brake
Technology
Hall effect
Type
single pedal
Other characteristics
suspended, IP67
Applications
for vehicles
