نام محصول:
پدال کنترل
نام انگلیسی:

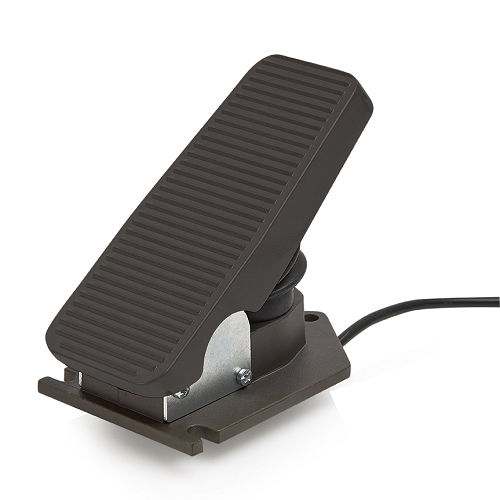

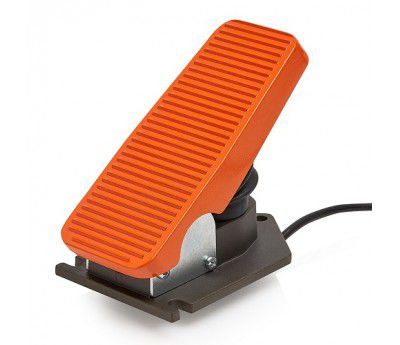

Control pedal MYTHOS
برند:
ELEN Srl
مشخصات:
The Elen electronic pedals from the Mythos series are the ideal solution for the most demanding applications thanks to the extremely robust die-cast aluminum structure.
SUITABLE FOR
open field tractors, construction machines, telehandlers, counterbalanced forklift trucks with high capacity, street-sweepers.
FEATURES
Supply voltage: 5 V; 12-24V; 24-48 V
Output: single / double; option IVS signal
Output types (programmable): voltage (0,5-4,5V; 0-10V) or current (4-20 mA) analog signal; PWM (0.1-1 kHz); CAN (SAE J1939 / CANopen)
IVS types: single / double; NO / NC; dry contact / open drain; programmable switch threshold
Cable and connector: customizable

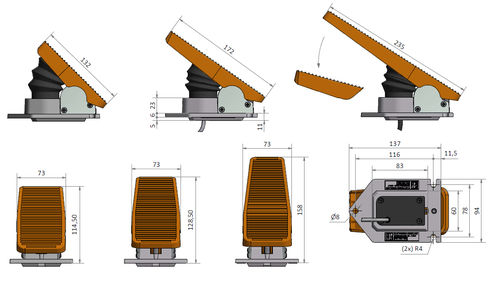

Footboard: available in 3 lenghts
Operating principle: Hall effect (contactless)
Protection degree: IP67
Base / footboard material: die cast aluminium
Circuit redundancy: two isolated and galvanically separated circuits
Return to starting position: two independent springs
BEST USES
• Accelerator pedal for electronically controlled diesel engines subjected to emission standards from Stage IIIB on.
• Accelerator pedal for electrically-driven vehicles
• Inching pedal for work vehicles with hydrostatic transmission
• Compliance of control devices with functional safety standards
• Implementation of electronic drive-by-wire devices
• Use of a reliable device in harsh environments
• Technological upgrade of control pedals
• Cost saving and space optimization for replacement of pedal solutions with separate sensor
• Plug and play solution with integrated electronics
توضیحات:
Function
control, accelerator, clutch
Technology
Hall effect
Type
single pedal
Other characteristics
rugged, IP67
Applications
for vehicles
