نام محصول:

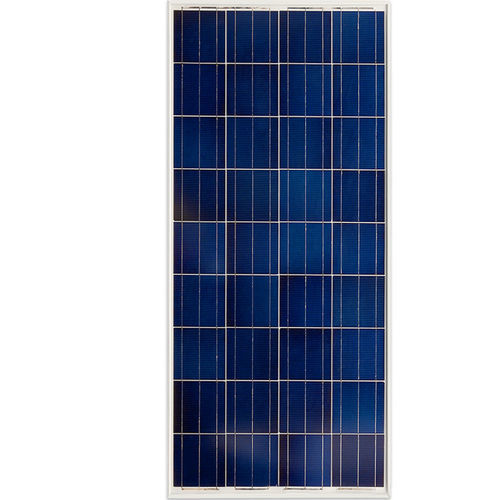

پانل خورشیدی پلی کریستالی
نام انگلیسی:
Polycrystalline silicon solar panel BlueSolar
برند:
Victron Energy
مشخصات:
Low voltage-temperature coefficient enhances high-temperature operation.
Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
25-Year limited warranty on power output and performance.
5-Year Limited warranty on materials and workmanship.
Sealed, waterproof, multifunctional junction box gives high level of safety.
High performance bypass diodes minimize the power drop caused by shade.
Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
Pre wired quick-connect system with PV-ST01 connectors.
توضیحات:
Material
polycrystalline silicon
Other characteristics
high-performance
Peak power (Wp)
Max.: 330 WMin.: 20 W
Open-circuit voltage
Max.: 44.72 VMin.: 21.96 V
Short circuit current
Max.: 9.57 AMin.: 1.18 A
Max power voltage
Max.: 37.3 VMin.: 18.4 V
Max power current
Max.: 8.86 AMin.: 1.09 A
Lenght
Max.: 1,980 mm(78 in)Min.: 440 mm(17 in)
Width
350 mm, 668 mm, 992 mm, 1,002 mm(14 in, 26 in, 39 in, 39 in)
Height
25 mm, 30 mm, 35 mm, 40 mm(1 in, 1 in, 1 in, 2 in)
Weight
Max.: 23 kg(50.71 lb)Min.: 1.9 kg(4.19 lb)
