نام محصول:

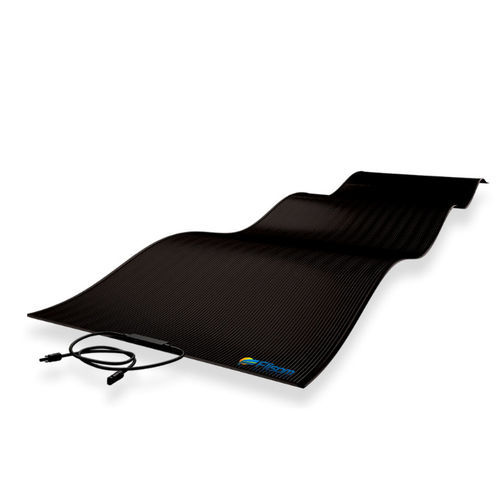

پانل خورشیدی سیگار
نام انگلیسی:
CIGS solar panel Solar Cells FF110 110W-120W 3,10m
برند:
Clayton Power
مشخصات:
eFlex combines flexibility, lightweight and performance into a solar module that only Flisom can build. Our fully flexible solar panel is ready for direct integration on all kind of surfaces.
Application:
+ Low-load bearing commercial and industrial solar roofs
+ Works on EPDM, TPO and Modified Bitumen membrane roofs
+ Works on standing seam roofs
+ Perfect for low-load bearing roof situations – only 3.5 kg/m2
Advantages:
+ Ready to be bonded on many qualified membranes and metal surfaces
+ Adhesive over the full back area of the flexible solar laminate – ensures lifetime adhesion
+ Reduced BOS cost due to simple peel & stick adhesive – No additional mounting hardware or assembly times required
+ Non penetrating roof installations – no risk of water leakage or roof damage
+ Lightweight solar installation allows installation on every roof, no roof enforcement or extra ballast required
+ Safe installation with lightweight panels- no heavy bulky glass panels on the roof, which might be a risk for safety
+ Flexible solar panels are bonded flat on roof and do not add additional wind load to the roof, much better aerodynamic design for high wind speed areas
+ Uniform black design provides the best look, important for architects and buildings with visible roofs
+ Durable non-breakable Swiss made solar panel design
+ Highest shade tolerance due to laser interconnected thin film cells
+ High energy yield in all light conditions due to CIGS technology
توضیحات:
Material
CIGS
Other characteristics
black, flexible
Peak power (Wp)
110 W
Max power voltage
34.5 V
Lenght
3,100 mm(122 in)
Width
411 mm(16 in)
