نام محصول:
واحد پمپاژ خودجوش
نام انگلیسی:
Self-priming pumping unit
برند:
Beinlich Pumpen
مشخصات:

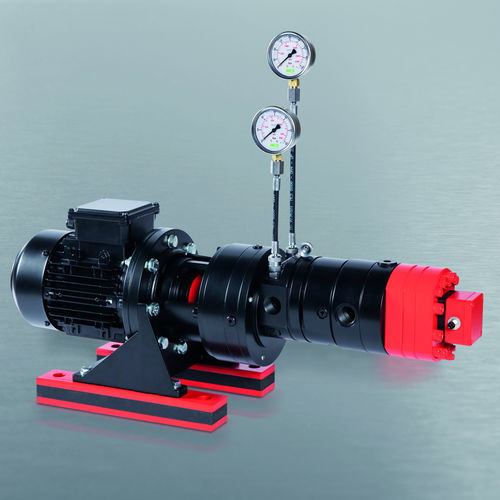

Delivery pump units
Beinlich self-priming delivery pump units consist of external gear pumps which are made from standard materials 0.7050 (housing) / 1.8550 (shafts and gears) and FKM (static seals).
They are especially suitable for the low pressure range and can convey almost every low viscosity media as well as uncritical media without fillers which are compatible to the materials used.
The engine power of the 4 pole asynchronous three-phase motor is sufficiently assessed for achieving differential pressures of up to 40 bar. Additionally, delivery pump units are available within a short delivery time, thanks to standardised units.
Performance data
Displacements 0.1 up to 72.0 cc/rev
Speed 150 up to 1,750 rpm ((by using a frequency converter)
Viscosity 1 up to 800 mPas
Pre pressure:
Max. 10 bar by using a rotary shaft seal
Max. 20 bar by using a magnetic coupling
Application areas
Filling plants
Printing machines
Paint industry
Filter technology
Generator construction
Cooling machines
Mechanical engineering
Hydraulics
Oil processing
Tank facility construction
Compressors
Vacuum plants
Machine tools
توضیحات:
Priming
self-priming
Technology
gear
Mobility
stationary
Domain
industrial
Flow
Max.: 14.4 l/min(3.80408 us gal/min)Min.: 0 l/min(0 us gal/min)
Pressure
Max.: 40 bar(580.151 psi)Min.: 3 bar(43.511 psi)
