نام محصول:
واحد پمپاژ آب
نام انگلیسی:
Water pumping unit TB 05 thru 12
برند:
Oilgear
مشخصات:
With a unique, patented design, the Transfer Barrier™ Pumping System gives you precision control when pumping high-pressure water, chemicals or slurries. Users have applied it to fracking, LNG, water-jet cutting and press control. It can do that—and a lot more.
Product Details

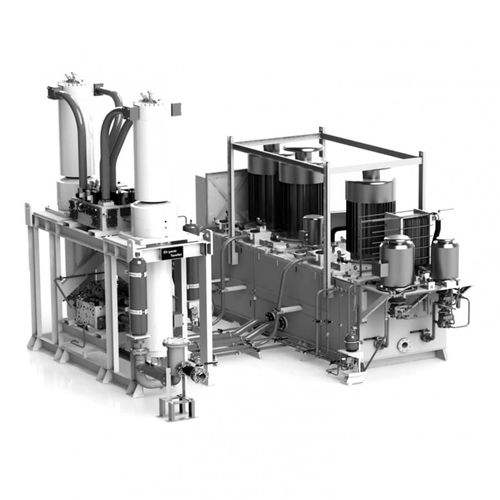

The Oilgear Transfer Barrier Pumping System uses the flow of oil from a hydraulic power unit (HPU) to precisely control the motion of large pumping plungers. And based on the area ratios of the plungers, the Transfer Barrier either intensifies or reduces the output pressure.
The Transfer Barrier Pumping System is a top choice in various industries for a variety of reasons. But it’s best known for its long life, precision control, flexible packaging and placement, and reduced downtime.
The Transfer Barrier Advantage
Oilgear Transfer Barrier Pumps are built to take on tough, high-pressure applications. And with features that set the system apart, there are plenty of reasons to choose Transfer Barrier for your operations.
Longer Life
Our plungers are driven hydraulically not mechanically. This allows for huge on-axis force. A larger axis force means you’re working with larger plungers, fewer cycles and, ultimately, longer seal and valve life.
Precision Pumping Control
The Transfer Barrier is a variable-displacement pump with almost zero output ripple. Oilgear uses proprietary control algorithms to achieve precision pumping control.
Flexible Packaging
Because the Transfer Barrier Pump is driven hydraulically, the packaging can be easily adjusted to fit your footprint. If needed, the HPU and electrics can be remotely located. Other adjustments can be made to fit the pump for your operations.
توضیحات:
Fluid
water
Operation
electric
Priming
self-priming
Technology
centrifugal
Mobility
stationary
Domain
industrial
Applications
transfer
Flow
1,000 l/min, 1,500 l/min, 2,000 l/min(264.17205 us gal/min, 396.25808 us gal/min, 528.3441 us gal/min)
Pressure
260 bar, 300 bar(3,770.981 psi, 4,351.132 psi)
Power
Max.: 1,260 kW(1,713.12 hp)Min.: 433 kW(588.72 hp)
