نام محصول:
واحد فیلتراسیون کارتریج SSG Donaclone™

برند:
DONALDSON

نام انگلیسی:
Cartridge filtration unit SSG Donaclone™

مشخصات:
Technology
cartridge

Designed for
air

Other characteristics
compact, high-flow

Flow
Min.: 1,700 ft³/min (48.139 m³/min)
Max.: 4,800 ft³/min (135.921 m³/min)

توضیحات:

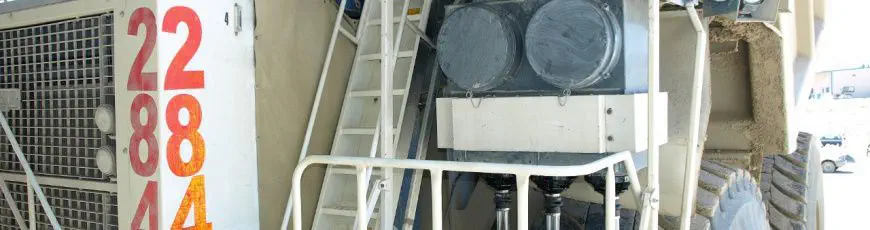

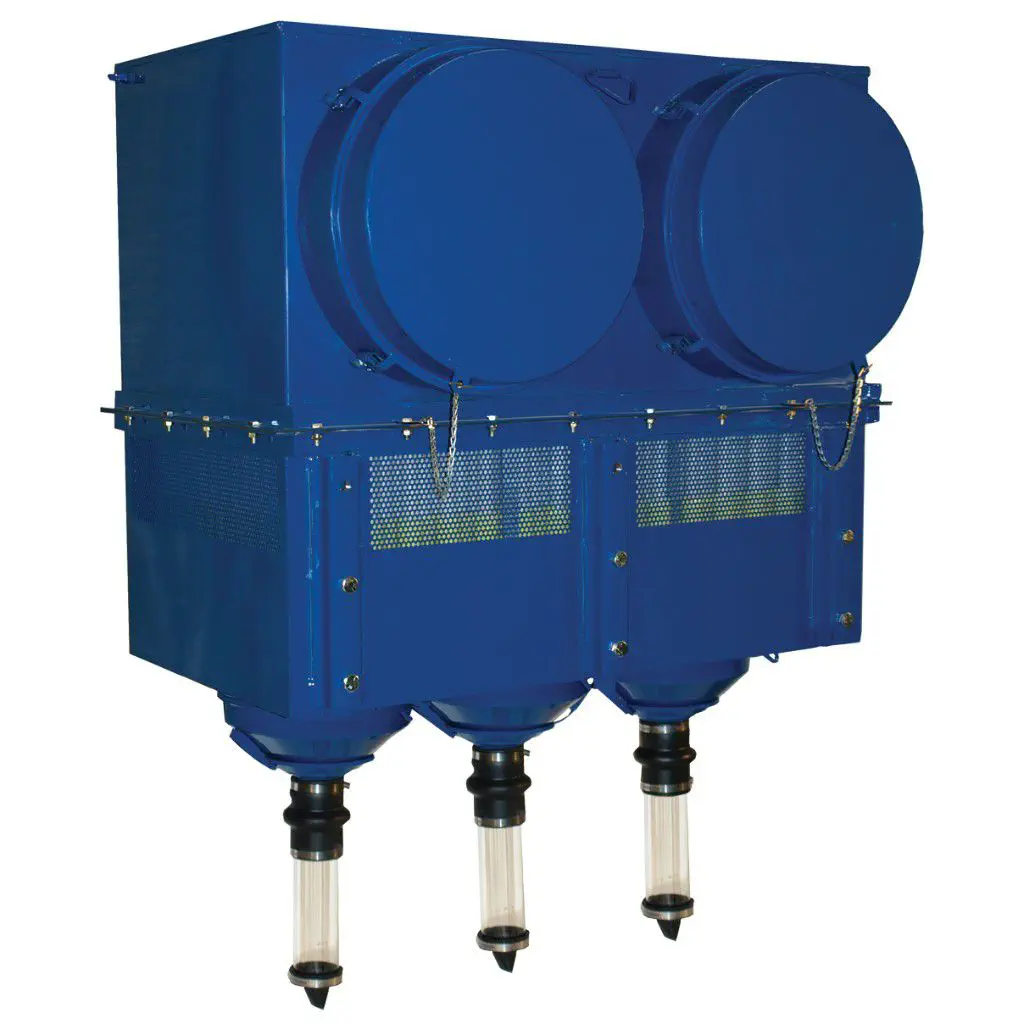

The SSG Donaclone™ is a two-stage RadialSeal™ air cleaner that is typically used for scrapers, earth movers, graders and haul trucks in heavy or extreme dust conditions.

Air Cleaner Features

Single and dual outlet models — two high-flow models available
Inlet has perforated holes on three sides; rain shrouds available if required
Filters have urethane end caps with RadialSeal™ sealing technology
Built-in pre-cleaning tubes separate up to 97% of the in-coming dust
Latch-style cover with attached safety chain for faster and simpler filter service
Constructed of heavy-gauge steel with a primed, ready-to-paint finish
Same overall package size as older Donaldson SRG axial seal style housings
Dust Dumpa tube accessory available — simplifies routine air cleaner inspections

Filter Features

Replacement primary filter choices: Standard life filters (for scheduled maintenance) and Donaldson Blue® high efficiency, extended service filters for restriction maintenance practices. Air cleaners ship with the standard filters
Grab handles on the primary filter to help remove the loaded filter during service
Safety filter on all models

Benefits

Sure sealing system
Durable construction withstands extreme conditions
Easy to service
Donaldson Blue high efficiency, extended service filters are available
