نام محصول:
واحد فیلتراسیون فشار DynaDisc

برند:
Nordic Water Products

نام انگلیسی:
Pressure filtration unit DynaDisc

مشخصات:
Technology
pressure

Designed for
for wastewater

توضیحات:
Intelligent design – efficient filtration

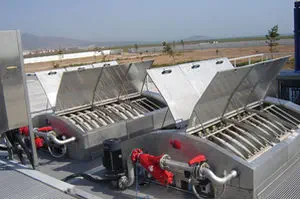

The DynaDisc filter, consisting of multiple filter discs constructed from modular demountable cassettes attached to a revolving inlet drum, maximises the filtration area in an industry leading compact footprint.

Available in two disc sizes, 1.9m or 2.4m diameter, providing up 197m2 net filter area per DynaDisc with up to 35 discs.

Woven filter media, with filter openings down to 10 microns, is bonded to the one-piece modular cassette ensuring optimum uniform media tension maximising filter media life and minimising the number of sealing joint interfaces.

A proven design providing you with high efficiency filtration and high flow rates within the minimum of space.

Filtration Applications
The versatile DynaDisc design is suitable for a variety of filtration applications such as:
• wastewater final effluent polishing (tertiary filtration)
• wastewater primary filtration
• pre-treatment for MBR processes
• intake and raw water filtration
• algae removal
• recycle and reuse water filtration
• filtration of water for industrial process plants
• pre-filtration before the sand filters
• pre-treatment & protection filtration for membrane plants
• water treatment in the paper and pulp
• water treatment in fish farming (aquaculture)

How the DynaDisc works
The water to be filtered flows via the inlet channel into the rotor drum and then flows by gravity into the filter disc segments through openings in the drum, and passes through the filter media. Suspended solids are separated and accumulated on the inside of the filter cloth.
