نام محصول:
واحد فیلتراسیون فشار سری NBS
برند:
NESTRO Lufttechnik GmbH
نام انگلیسی:
Pressure filtration unit NBS series
مشخصات:
Technology
pressure
Designed for
air
Other characteristics
for silos
Flow
12.5 m³/h (441.433 ft³/h)
Pressure
0.2 bar (2.9 psi)
توضیحات:

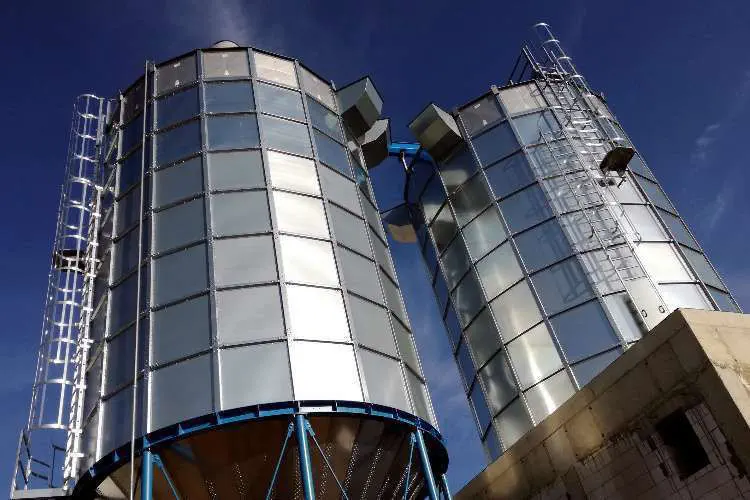

The NESTRO sheet metal silo NBS is a steel construction with galvanized steel sheet paneling with a structural design for an explosion pressure load of 0.2 bar (reduced dust pressure surge based on a Kst value of 150 bar*m/s). It is available in 18 sizes with a volume of between 101 and 419 m³. It has a self-supporting roof that is used to mount a ceiling filter or a cyclone. The silo is erected on a flat concrete surface.
Fully compliant with guideline 2014/34/EU. Structure certified according to EN 10204 3.1.
