نام محصول:
واحد فیلتراسیون تحت فشار

نام انگلیسی:
Pressure filtration unit AFR series

برند:
AFR series

مشخصات:

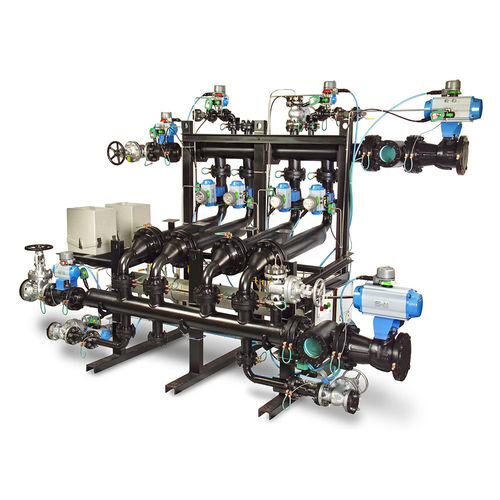

The AFR Industrial Filter is a unique, expandable circular design for increased capacity in a compact one-square-meter footprint. The AFR-Series is ideal for high volume, low viscosity applications with retentions as low as 2 microns. It also uses cleanable media that reduces life cycle costs and maximizes productivity.

Core features

Versatility with a modular design that enables future capacity and configuration flexibility.
Single system Flow rates up to 2,000 gpm (454 m³/hr)
Smooth pipe and nozzle connection transitions to avoid dead spots in the fluid stream and minimize pressure drop.
A broad selection of filter media materials and retentions suitable for a wide range of applications.
Proprietary 3-way, full-ported valves allow fast, frequent sequencing and maximum cleaning force during backwashing.
Isolated top-to-bottom backwash flow ensures complete and efficient media cleaning while continuing to deliver filtered product downstream.
Numerous automated backwash options for operator-free service and minimal backwash effluent (<2% of system volume).
Available ACCUFLUX media dramatically increases filter surface area in the same footprint.
Configured with an array of up to eight – 4" (101.8 mm) or 6"; (152.4 mm) body tubes surrounding a central cleaning valve

توضیحات:
Technology
pressure

Designed for
hydraulic

Other characteristics
backwash

Flow
454 m³/h(16,032.859 ft³/h)

Filtration size
Min.: 1 µmMax.: 1.7 µm

Pressure
17.2 bar(249.46 psi)
