نام محصول:
واحد توزیع برق موبایل
نام انگلیسی:
Mobile power distribution unit
برند:
ELEKTRA TAILFINGEN Schaltgeräte GmbH & Co. KG
مشخصات:
What types of site power distributors are there?
The type and scope of electrical equipment on construction sites is geared to the size and particular circumstances of each site. Using the types of distributor described in the equipment standards, it is possible to set up a power supply solution from the feed-in point from the public grid all the way to the consumer connection tailored to all site requirements.
Through their solid construction and the use of high-quality materials and components, Elektra construction site current distributors provide high levels of safety and a long service life.
• Cabinets made of galvanised steel
• Weather-resistant powder coating in high-visibility RAL 6018 (yellowish green)
• Built-in components up to and including ground fault interrupters enclosed with double insulation
• Galvanised sub-frame included in space-saving format as quick-assembly construction kit
• Protection type IP 44 with door closed
• Protection type IP 21 with door open
• Protection type IP 54 around the meters
• Folding strain relief clamps, generous connection spaces, cross-divided connection housing for effortless insertion of the connection cables

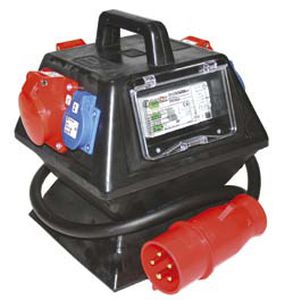

• Elektra socket distributors with 100% rubber casing
• Casing made of 100% impact-resistant rubber
• Resistant to oil and grease
• Insusceptible to many acids and alkalis
• Resistant to weathering, heat, cold and aging
• Rustproof
• Protection type IP 44
• Protection class II (double-insulated)
• Lightweight, portable and almost indestructible
توضیحات:
Type
mobile
Options
IP44, construction
Current
16 A, 32 A, 63 A, 125 A
Output voltage
230 V, 400 V
