واحد توزیع برق قفسه – TRIPPLITE – Rack-mount power distribution unit PDUH20DV

نام محصول:
واحد توزیع برق قفسه

نام انگلیسی:

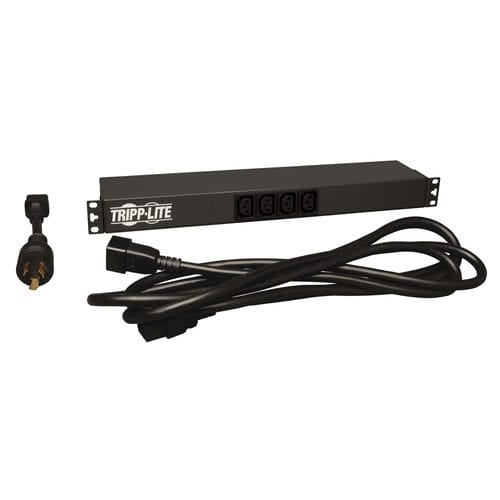

Rack-mount power distribution unit PDUH20DV

برند:
TRIPPLITE

مشخصات:
1.6–3.8kW Single-Phase 100–240V Basic PDU, 14 Outlets (12 C13 & 2 C19), C20 with L6-20P Adapter, 12 ft. Cord, 1U Rack-Mount

Versatile 20A 100–240V PDU is compatible with wide range of voltages to deliver single-phase AC power to multiple loads from a utility outlet, generator or UPS system. Ideal for data centers, server rooms and network wiring closets.

C20 input with detachable 12 ft. cord and L6-20P adapter

14 total outlets—12 C13 and 2 C19

Switchless design prevents accidental shutdown

Reversible all-metal housing

Installs in rack, on wall or under counter

5-year limited warranty

Overview

The PDUH20DV 1.6–3.8kW Single-Phase 100–240V Basic PDU is a versatile no-frills unit for data centers, server rooms and network wiring closets. Perfectly suited for high-density IT environments, the PDUH20DV features 14 total outlets—four C13 in front and eight C13 and two C19 in the rear.

The C20 input plug with detachable 12-foot (3.7 m) cord connects to your facility’s compatible AC power source, generator or protected UPS to distribute power to connected equipment. A NEMA L6-20P adapter is included for 208/240V power environments. The C20 inlet accepts any country-specific power cord with a C19 connector.

توضیحات:
Type
rack-mount

Options
for data centers, AC

Power
Max.: 3,840 WMin.: 1,600 W

Current
16 A, 20 A

Output voltage
Max.: 240 VMin.: 100 V
