نام محصول:
واحد توزیع برق قفسه
نام انگلیسی:
Rack-mount power distribution unit SY4527
برند:
CAEN Spa
مشخصات:

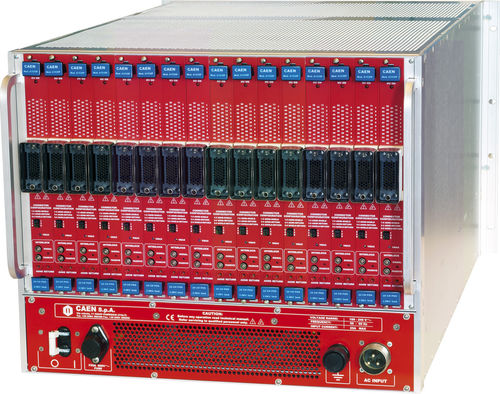

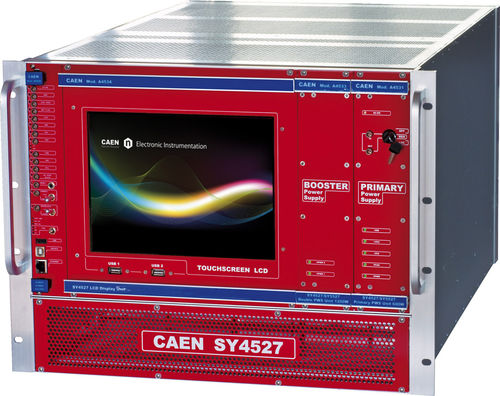

The SY4527 system is the fully equipped experimental version of a new line of power supply systems which represent CAEN’s latest proposal in the matter of High Voltage and Low Voltage Power Supplying. This system outlines a completely new approach to power generation and distribution by allowing the housing, in the same mainframe, of a wide range of boards with different functions, such as High/Low Voltage boards, generic I/O boards (temperature, pressure monitors, etc.) and branch controllers, where the latter are used to control other remote generators and distributors. Modularity, flexibility and reliability are the key-points of its design, enabling this module to meet the requirements needed in a wide range of experimental conditions. The mainframe is housed in a 19″-wide, 8U-high euro-mechanics rack and hosts four main sections:
the Board Section, with 16 slots to house boards, distributors and branch controllers; “Low cost” version with 10 slots is available (NEW)
the Fan Tray Section, housing 6 fans arranged on two rows, with programmable rotation speed regulation;
the Power Supply Section, which consists of the primary power supply and up to 3 power supply units;
the CPU and Front Panel Section which includes all interface facilities.
The CPU controller is available in 3 different versions: BASIC, ADVANCED and FULL.
The BASIC version provides all the communication interfaces, the RESET control, the INTERLOCK control and status LEDs.
The ADVANCED version also provides the beam handshake management connectors (CH-ON, GEN, VSEL, ISEL).
The FULL version provides the complete set of panel connectors, the ENABLE control section, and the fan speed control.
توضیحات:
Type
rack-mount
Options
modular, 19″ rack, internet-switched
Power
2,750 W, 5,500 W
Current
25 A
Output voltage
110 V, 220 V
