نام محصول:

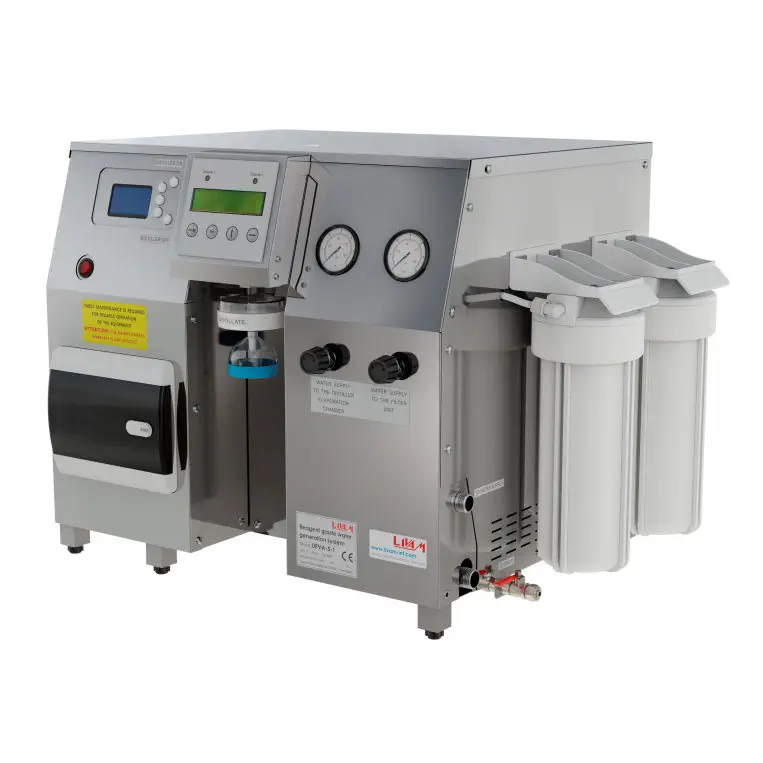

واحد تصفیه آب آزمایشگاهی UPVA-5-1
برند:
Livam GmbH
نام انگلیسی:
Laboratory water purification unit UPVA-5-1
مشخصات:
Applications
laboratory
Options
reverse osmosis
توضیحات:
Special features
– Nodes and parts being in contact with steam and distilled water are made of AISI 321 stainless steel and other materials which do not affect the quality of product water.
– Protective panels protect personnel from contact with hot parts and have decorative purpose.
– Built-in control unit.
– Built-in distillate cooler.
– Spare tubular heating element, source water supply tube and distillate drain tube, spare set of prefilters included into the kit.
– Heating elements switch off automatically if centralized water supply disrupts and water level in the evaporation chamber drops below the allowable level.
– Level of water in the distiller fed for evaporation is maintained automatically.
– Three stages of purification:
1.1. Pre-filters,
1.2. Reverse osmosis membrane,
2. Distillation,
3. Deionization unit.
A multi-stage purification system enables obtaining type I water, used for very sensitive laboratory analysis methods, including high-performance liquid chromatography, atomic absorption spectrometry and trace determination of components.
– The system works from tap water.
– Real-time monitoring of source water quality.
– Recirculation of water obtained.
Assignment reagent grade water production
Capacity, l/h type I water: 5.0 – type II water: 5.0
Electrical conductivity of product water0.05 µs/cm
Quality of product water Type I, II
Product water temperature, °С25 max
Current type, frequency, voltage single-phase AC, 50 Hz, 220 V
Power consumption 3,6 kVA
Source water consumption, l/h (at water t from 10 to 12 °С at pressure from 0.2 to 0.4 MPa)40
Source water pressure, MPa 0.1 – 0.4
Dimensions (LxWxH), mm 670×470×490
