نام محصول:
واحد بسته فشار بالا

نام انگلیسی:

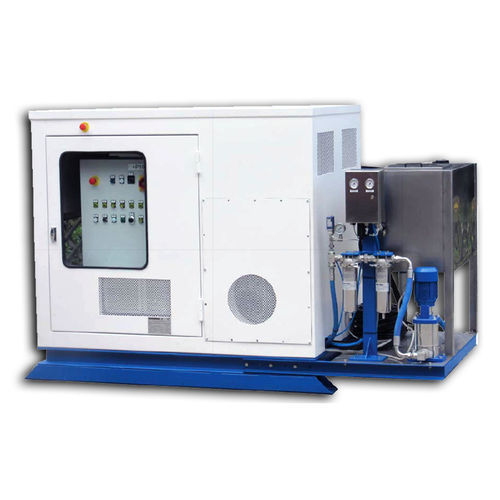

High-pressure pack unit HPE-250-50

برند:
Airmation ECP srl

مشخصات:
High-pressure Ultra Clean unit – electric version HPE-250-50-S7-Cx (V3AM)

High pressure cleaning Equipment for optimal surface preparation with use of water only.

Application item: Industrial cleaning – Paint stripping

Water jet cleaning machine – Electrical series 2500 bar

Airmation ULTRACLEAN “Ecologic System” Equipments

Manual and automatic paint stripping operations

Using high pressure water – motorized performance tool – use of mains water

Removal of multilayer paints and impurities attached to work-piece holders and to painting lines holders and painting lines.

Exclusive use of water.

The Airmation ULTRACLEAN “Ecologic System” equipment is an High-effective and fast solution for complete cleaning and paint stripping operations of work-piece holders and other items.

Using just mains water, it’s possible to remove different types of paints and resins (water based, solvent based and powder coatings) attached and stratified to different kinds of metallic surfaces. It also cleans efficiently oxides and various impurities.

The degree of cleanliness obtainable is very high up to live metal, white metal grade.

The UltraClean technology splits the necessary impact force needed to the removal operations into plurality of high kinetic energy jets . Small quantities of water are usually sufficient for a satisfactory performance.

The high-speed rotation given to the single jets (about 4300 rpm), coming out at high pressure at supersonic speed (600 m/s) and with specific inclinations, allows to undermine and remove the deposits restoring the original surface.

توضیحات:
Power source
electrically-powered

Applications
for cleaners, for power tools, high-pressure

Operating pressure
Min.: 0 bar(0 psi)Max.: 2,500 bar(36,259 psi)

Nominal power
45 kW(61.2 hp)

Flow rate
Min.: 0 l/min(0 us gal/min)Max.: 10.7 l/min(2.83 us gal/min)
