نام محصول:
واحد برق هیدرولیک موتور بنزین
نام انگلیسی:

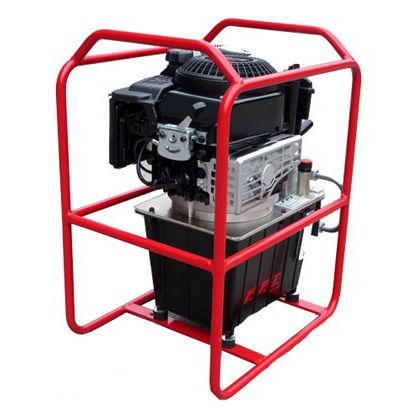

Gasoline engine hydraulic power unit FPH-MS series
برند:
FPT Fluid Power Technology
مشخصات:
The Series FPT-MS Series is a 700 bar high pressure gasoline hydraulic pump. Ideal for field applications, where it is essential to have energy independence. The whole series is equipped with a protection cage that simplifies transport and lifting and protects the control unit on construction sites.
• Equipped with 4-stroke motor.
• Various sizes of reservoirs, from 5 to 40 litres, for use with a wide range of equipment and cylinders.
• 3 or 4-way manual, electric or pneumatic valves can also be mounted.
• Reduced maintenance. Designed to last.
• Hydraulic pumps are always supplied without couplers.
Gasoline hydraulic pump with internal combustion engine, model FPT-MS are the ideal solution for all applications where it is not possible to connect to the electricity or air line. They are equipped with a 4 stroke petrol engine. They have the possibility of mounting manual, electric or pneumatic 3 or 4 way valves for single or double acting actuation of cylinders and hydraulic equipment. Gasoline hydraulic pump equipped with a robust steel tank from 10 to 60 liters. The whole series is equipped with a protection cage that makes the transport easy and lifting and protects the control unit on construction sites. A wide range of accessories is available.
The combustion engine control units find application in the railway sector, in the stringing of electric lines and to operate in areas or construction sites without electricity or connection to compressed air.
توضیحات:
Power source
gasoline engine
Applications
for mobile machines, lifting, for construction site, high-pressure
Other characteristics
compact
Operating pressure
Max.: 700 bar(10,153 psi)Min.: 100 bar(1,450 psi)
Nominal power
3 kW(4.1 hp)
Flow rate
Max.: 7.9 l/min(2.09 us gal/min)Min.: 0.9 l/min(0.24 us gal/min)
Tank capacity
10 l(2.64 gal)
