نام محصول:
واحد برق هیدرولیک موتور الکتریکی
نام انگلیسی:

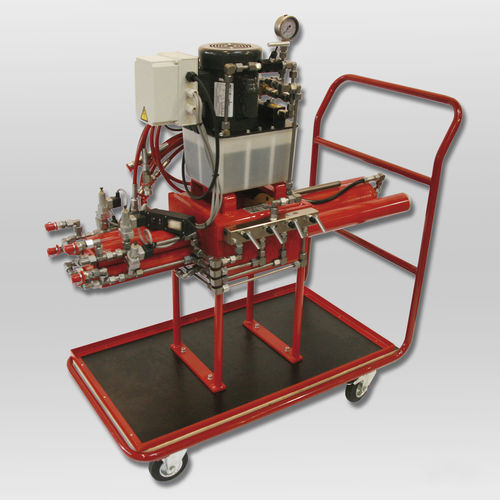

Electric motor hydraulic power unit JD 40 E+ VS
برند:
JUNG Hebe- und Transporttechnik GmbH
مشخصات:
Advantages of Hydraulic pressure blocks
• Synchronized lifting of multiple jacks. For loads with decentralized center of gravity. Simple and safe.
• Uncomplicated operation via push button (remote control).
• All slave-cylinders equipped with 520 bar safety pressure switches. Controls monitor pressure switches with LED indicator preventing any possible overloading.
• Retracting of the hydraulic jacks also without load (JH 15 – 20 G plus EX).
• Load independent, maintains constant lifting speed.
• Controllable lowering speed.
• The complete system is mobile and conveniently mounted on a cart.
• Electrical pump JPE 30 and VS-control unit for driving individual lifting devices.
• Clear and simple control unit, adjustable to control all or individual jacks. Configurable also for using three-point lifting system.
• Oil volume in the system is sufficient for up to 4 pcs. JH 10 G plus / JH 10 G plus EX / JHS 10. Larger jacks can be operated, but you need to lift twice to reach the full stroke.
• The cylinders in the pressure block are outfitted with spring return to retract the pistons automatically.
توضیحات:
Power source
electric motor
Applications
lifting
Other characteristics
wheel-mounted
Operating pressure
520 bar(7,542 psi)
