نام محصول:
واحد برق هیدرولیک با نیروی الکتریکی
نام انگلیسی:

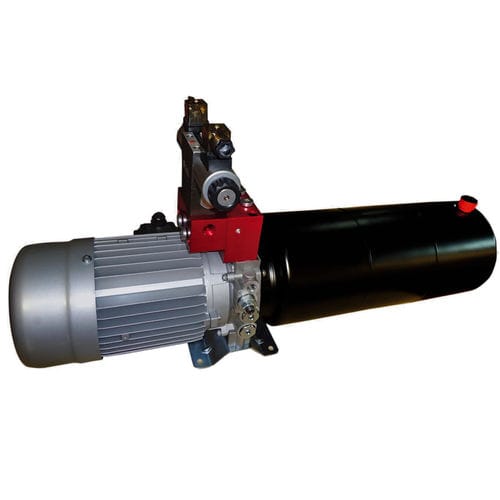

Electrically-powered hydraulic power unit
برند:
Tubes International
مشخصات:
Mini hydraulic POWER PACKS are designed to operate single-acting and double-acting cylinders in simple high pressure hydraulic systems. The power units, in their basic configuration, include an electric motor connected to an oil-immersed hydraulic pump, safety valve (set at the maximum system pressure) and suction oil filter. Depending on application, the power unit can be additionally equipped with: solenoid valve NO/NC (single-acting cylinder operation), NG6 directional control valve (double-acting cylinder operation), throttle valve (cylinder fall speed control), level gauge (tank oil level monitoring), pressure switch, remote control set (emitter – receiver), control module (two or four switches), etc.
Some of the applications include: trucks (trailer tilt mechanism, hydraulic platform), car lift, recycling press, scissor lift, etc.
To select your hydraulic power unit correctly, please contact Tubes International.
توضیحات:
Power source
electrically-powered
Applications
cylinder
Other characteristics
mini
Operating pressure
Min.: 10 bar(145 psi)Max.: 200 bar(2,901 psi)
Nominal power
Min.: 350 W(0.5 hp)Max.: 4,100 W(5.6 hp)
Tank capacity
Min.: 1 l(0.26 gal)Max.: 30 l(7.93 gal)
