نام محصول:
واحد برق هیدرولیک با نیروی الکتریکی
نام انگلیسی:
Electrically-powered hydraulic power unit
برند:
INNOVAPAPER
مشخصات:
Scope of Supply
• Typical scope of supply consist of:
• ProCleaner(s) itself;
• Pump unit(s);
• Control System.
Features
Pump Module
Up to 4 cleaners can be supplied with one module.
The pump module is completely assembled on a stainless steel frame, with integrated high-pressure filters installed. All safety components, to include pressure switches, temperature switches, solenoid valves, pressure regulator, etc. are included in the pump module supply. The pump module is completely pre-assembled with stainless steel piping and all electrical components are pre-wired with all electrical connections terminated in a junction box that is part of the pump module supply.
aximum Operating Pressures
For Forming Section:
• max. 120 bar (1,800 psig).
For Press Section:
• max. 60 bar (900 psig).
For Forming Dryer Section:
• continuous: max. 350 bar (5,000 psig);
• batch: max. 80 bar (1,200 psig).
Note: An existing pump can also be used for batch cleaning.
Control System
Up to 4 cleaners can be controlled with one system.

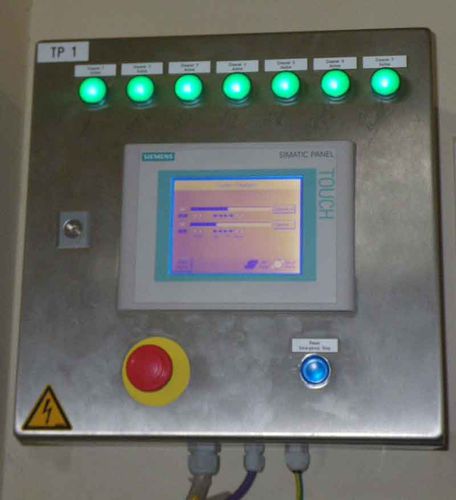

A central control cabinet is supplied with single or multiple ProJet cleaning system installations. In addition, each ProCleaner is supplied with a local control case. As an option, a touch panel control case will be supplied for remote control of all ProJet systems from a control room or other central location.
توضیحات:
Power source
electrically-powered
Applications
high-pressure, pump
