نام محصول:
واحد برق هیدرولیک با نیروی الکتریکی
نام انگلیسی:

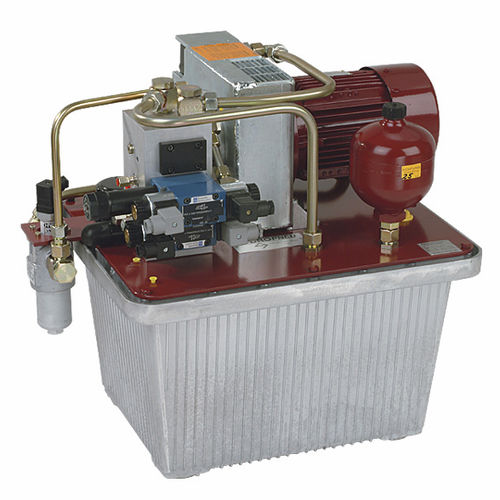

Electrically-powered hydraulic power unit KA series
برند:
HYDROPNEU
مشخصات:
At HYDROPNEU we have used our years of experience to develop power unit series that can cover a wide range of applications. Our standardized compact unit series KA, available in five sizes, already covers many common applications and can be adapted quickly and cost-effectively to your requirements due to its modular design and numerous additional options.
• For valve assembly of construction size NG6 (other sizes avallable an request)
• Oil tank made of aluminum with high radiating capacity (steel possible on request}
• Medium: hydraulic mineral oil HLP according to DIN 51524 part 2 (others possible on request)
• Ambient temperature range -20°C to +40°C
• Degree of protection IP55 (others possible on request)
• Adjustable pressure relief valve as security element
• Pressure gauge for displaying the set pressure
• Sight glass for checking the fill Ievei
• Return flow filter with optical contamination indicator
• Piping and electrical wiring up to the power unit Iimit
ln addition to these basic equipment features, units of the Hydropneu compact series can
be individually adapted to your requirements with additional options.
توضیحات:
Power source
electrically-powered
Other characteristics
compact, modular
Operating pressure
Min.: 0 bar(0 psi)Max.: 250 bar(3,626 psi)
Nominal power
Min.: 1 kW(1.4 hp)Max.: 11 kW(15 hp)
Flow rate
Min.: 2 l/min(0.53 us gal/min)Max.: 21 l/min(5.55 us gal/min)
Tank capacity
Min.: 13 l(3.43 gal)Max.: 100 l(26.42 gal)
