نام محصول:
واحد برق هیدرولیک با نیروی الکتریکی
نام انگلیسی:

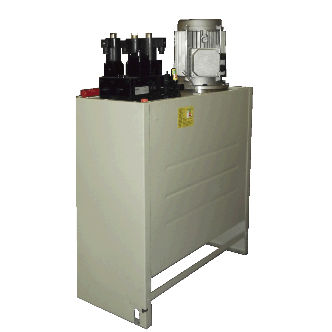

Electrically-powered hydraulic power unit GL DRY, F1 series
برند:
GMV
مشخصات:
THE POWER UNITS HAVE ELIMINATED THE GAP BETWEEN THE HYDRAULIC AND THE ELECTRIC LIFT SYSTEMS in terms of installed power, energy consumption and pollution, with only a 2 % surcharge on the costs of a traditional hydraulic system, through:
DRY ENGINE
The dry engine increases the energy efficiency of the system, reducing power losses due to the submersed engine in the viscous fluid; it ensures a lower heating-up of the fluid and therefore a reduced need of assistive cooling devices. It allows a consistent reduction of the fluid quantity, at equal operational efficiency (capacity, travels and speed), hence promoting the use of ecological fluid instead of traditional mineral oil. The dry engine allows lowering the noise level of the lift system.
ELECTRONICALLY CONTROLLED VALVE
GMV not only supplies the NGV electronic valve but additionally offers an electronic control of the valve by means of the electronic control system of leveling to floor ETC (Electronic Temperature Control).
ECOLOGICAL FLUID as an alternative to the traditional mineral oil
MAIN ADVANTAGES
ECO-COMPATIBILITY due to the biodegradable ecological fluid, NO OIL
COMFORT AND HIGH OPERATIONAL PERFORMANCE due to the electronically controlled valve and to the electronic control system of leveling to floor ETC (Electronic Temperature Control)
LESS POWER CONSUMPTION (more than 30 %) compared to old hydraulic systems, due to the electronically controlled valve and to the high efficiency of the dry engines
Up to 20 % REDUCED INSTALLED POWER (at least up to 630 kg) compared to old hydraulic systems, due to the dry engines (no flow resistance), and to the new NRGS power unit (Energy saving)
توضیحات:
Power source
electrically-powered
Applications
engine
Other characteristics
compact
Operating pressure
45 bar(653 psi)
Nominal power
Min.: 2 kW(2.7 hp)Max.: 9 kW(12.2 hp)
Flow rate
Min.: 55 l/min(14.53 us gal/min)Max.: 150 l/min(39.63 us gal/min)
Tank capacity
Min.: 120 l(31.7 gal)Max.: 130 l(34.34 gal)
