نام محصول:
واحد برق هیدرولیک با نیروی الکتریکی
نام انگلیسی:

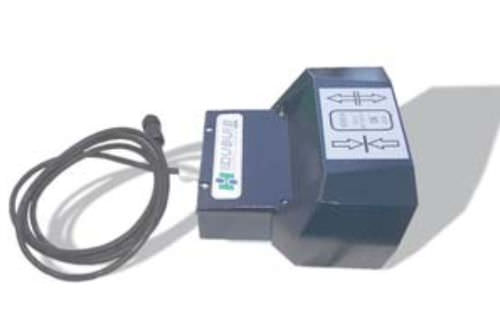

Electrically-powered hydraulic power unit PHE706
برند:
DUBUIS Outillages
مشخصات:
220V electrical hydraulic group type PHE 706, supplied with 2 switches remote control (cable length : 3m.), a 160 mA additional fuse in plastic bag, 0.5L bottle of XV32 insulating hydraulic oil.
Technical data:
– designed for an intensive work : service S3/S6 of 40% (i.e.: crimping capacity with a XC130 head : 6 terminal lugs of 185mm2 per minute).
– Motor 750W single-phase 220V 50Hz with condenser of starting (permiting the starting off under load).
– Automatic stop of engine at 700 Bar. Safety valve against overpressure risks.
– Thermal circuit breaker to protect against electric motor overcharge.
– Emergency control for manual return of piston.
– Protection level : IP 55 according to NF EN 60529.
Nota: 110V 50Hz model, or equipped with UK or US plug, available upon request.
– Ergonomic and noiseless group.
– Excellent weight/power ratio.
توضیحات:
Power source
electrically-powered
Other characteristics
mobile
Operating pressure
Max.: 700 bar(10,153 psi)Min.: 0 bar(0 psi)
Nominal power
750 W(1 hp)
