نام محصول:
واحد برق هیدرولیک با نیروی الکتریکی
نام انگلیسی:
Electrically-powered hydraulic power unit NFPA-JIC
برند:
CONTINENTAL HYDRAULICS
مشخصات:

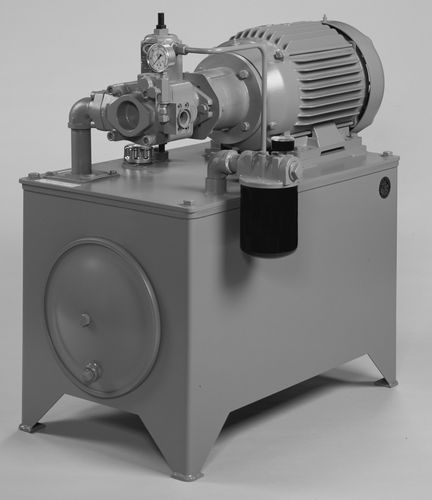

JIC style units are power units with pump motors mounted horizontally on the top of the reservoir. Tank sizes from 10 gallons to 210 gallons. All combinations of Continental pumps are available; Vane 4-75GPM up to 3000 PSI, Piston pumps 6-29 GPM up to 4000 PSI, gear pumps .5 GPM to 12 GPM up to 3600 PSI. Pluss many accessories configurable to produce a complete system.
Key Features:
System standards reference NFPA Stationary Industrial machinery.
Continental wide variety of hydraulic valving: Sizes are D03, D05, D07, D08, on off and proportional
Assemblers are CFPS over 20 years’ experience each
Multitude of fluid power accessories: Examples are; Gauges, ball valves, check valves, pressure and temperature switches, filters, heat exchangers, tank heaters, etc.
SAE ports, flange ports, hydraulic tubing and hose with 37Degree tube fittings.
Robust and quiet
Motor controls and panels
Epoxy painting
Documented and Tested 100%
18-month warranty
توضیحات:
Power source
electrically-powered
Other characteristics
stationary, with piston pump, with gear pump
Operating pressure
138 bar(2,002 psi)
Nominal power
4 kW(5.4 hp)
Flow rate
37.8 l/min(9.99 us gal/min)
Tank capacity
Min.: 10 galMax.: 210 gal
