نام محصول:
واحد برق هیدرولیک با نیروی الکتریکی
نام انگلیسی:
Electrically-powered hydraulic power unit EDP xx 102 series
برند:
AS Tech Industrie- und Spannhydraulik GmbH
مشخصات:
Our electrical hydraulic power units produce a very high flow rate at operation pressures up to 2500 bar. The electro-hydraulic power units are available for several voltages and in different power configurations. Due to the considerable greater flow rate in comparison to the hand-lever and air-hydraulic pumps, these power units are mainly used for quick pressure generation or delivery of greater oil capacity.
Apart from bolt tensioning devices these power units are also used for mounting and dismounting of shaft/hub connections. For build-up and release pressure the pumps are controlled by the press of a button wired pendant control or wireless!
Standard design
Motor 230V/50Hz- 1,5 kW
Pressure 1600 bar
Flow rate 0,9l/min
Tankvolume 4 liter

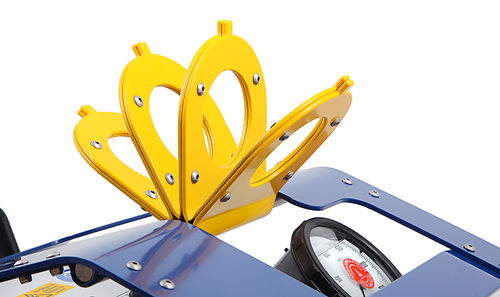

Support frame with swivel stop ring and ergonomical carrying rings
2 Outletports with couplings
Wired remote control
Options
Motor 110V/400V
Pressure 1000 bar/2500 bar
Active oil cooler
Tankvolume 8 liter, mounted on wheels
Wired remote control with pressure display, wireless remote control
Documentation system
Second Pressure gauge, stainless steel tank, hose safety unit
توضیحات:
Power source
electrically-powered
Applications
for tensioning devices
Other characteristics
mobile
Operating pressure
1,600 bar(23,206 psi)
Nominal power
2 kW(2.7 hp)
Flow rate
0.91 l/min(0.24 us gal/min)
Tank capacity
4 l(1.06 gal)
