نام محصول:
واحد برق هیدرولیک با سیستم خنک کننده
نام انگلیسی:

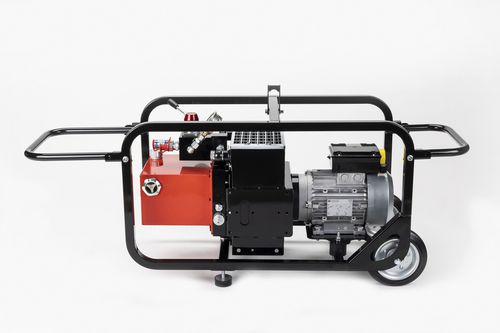

Hydraulic power unit with cooling system PP700
برند:
Tehma SA
مشخصات:
TEHMA PP700 power pack constitutes a unique compromise to efficiency, robustness and performance.
Equipped with a very efficient cooling system joined to a high performance two-stage pump, can maximize the performance of every TEHMA tool connected.
Fitted with the TEHMA MM30 multiplier module, can run up to 3 SP400/SP600 splitting cylinders simultaneously.
The unit is available with two different motors, a versatile 3Hp single-phase electric motor, ideal for indoor demolition as it can be plugged to a traditional 230V/110V household power, or a 5Hp gasoline engine for outdoor uses.
The high efficiency cooling system 2.0 drastically contrasts the oil overheating and cuts it down by about 60%, compared to ordinary power units on the market.
This ensures maximum performance of the power pack, also in the hottest climates and a better usability of the tools connected even with the more demanding and prolonged applications.
The innovative two-stage pump is a further element of distinction of the unit and ensures performance well above the category. This allows to speed up to the maximum the tools connected and significantly improve the work rate and consequently the productivity.
توضیحات:
Power source
electric motor, gasoline engine
Applications
for mobile machines, high-pressure, for construction site, for torque wrenches, multi-use
Other characteristics
compact, wheel-mounted, portable, high-power, double-pump, with cooling system
Operating pressure
700 bar(10,153 psi)
Nominal power
2,200 W, 3,600 W(3 hp, 4.9 hp)
Flow rate
Min.: 1.6 l/min(0.42 us gal/min)Max.: 9 l/min(2.38 us gal/min)
Tank capacity
6 l(1.59 gal)
