نام محصول:

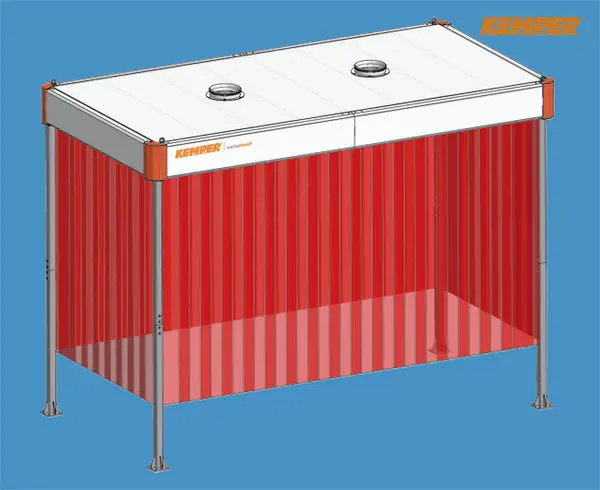

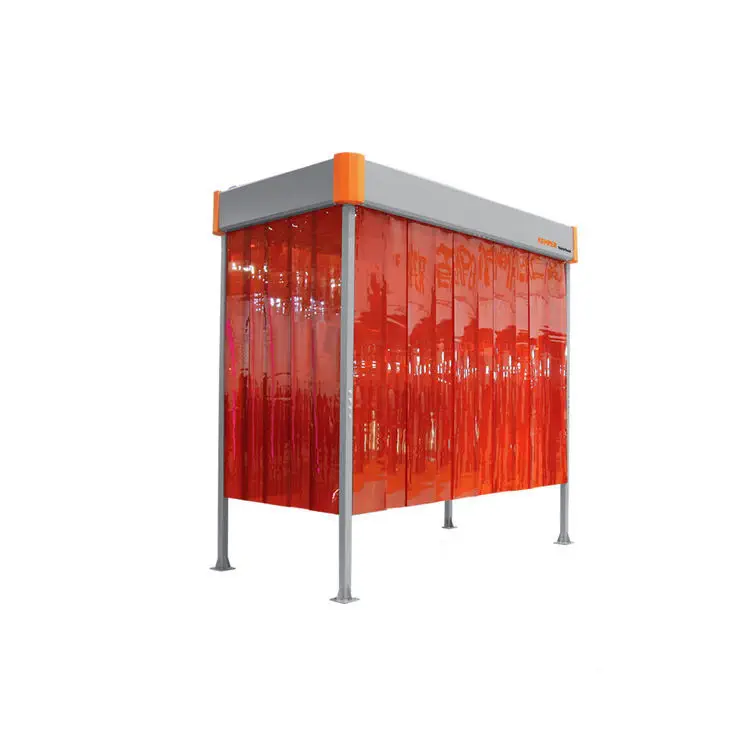

هود ماژولار استخراج VarioHood

برند:
KEMPER (U.K.) Ltd.

نام انگلیسی:
Modular extractor hood VarioHood

مشخصات:
Other characteristics
for welding robots, modular

Air flow
Max.: 950 m³/h (33,548.9 ft³/h)
Min.: 600 m³/h (21,188.8 ft³/h)

توضیحات:
Due to its modular design the KEMPER variohood exhaust hood for welding robots can be configured in a number of sizes. Due to the innovative air flow principle, the hood requires only a low flow rate to operate effectively. Flexible set-up options, for instance mounting on stands in the room, suspended from the ceiling or integrated into a movable robot gantry, offer plenty of scope for plant design.

Robot extraction
Process extraction
Addition to the spot extraction

Less extraction power required due to innovative flow principle
Plenty of scope for plant design due to variety of mounting options
Low transport costs and easy installation thanks to assembly set
Many different sizes available due to the modular design
Increased health protection because dust can be sucked up directly at source
Protection against welding spatter for staff and equipment thanks to welding strips

Modular design
Suspended from the ceiling, mounted on stands or integrated into a movable robot gantry
Innovative air flow principle
Insertable

Various sizes
