نام محصول:
نویز تولید کننده
نام انگلیسی:

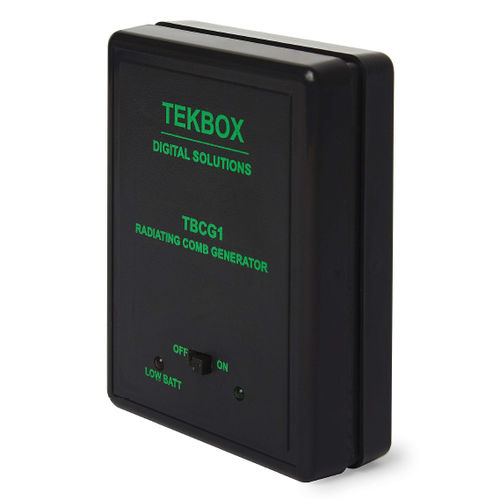

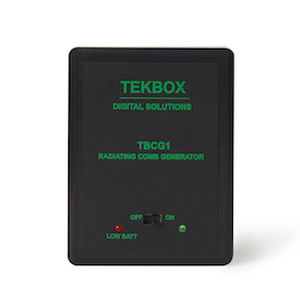

Noise generator TBCG1
برند:
TEKBOX
مشخصات:
The TBCG1 is a radiating comb generator with an internal antenna and a base frequency of 100MHz. It radiates a comb spectrum characterized up to 6GHz. The comb generator is built and characterized to serve as a rough reference for testing radiated noise measurement set ups in anechoic chambers, TEM/GTEM cells, shielded chambers, etc.
SPECIFICATIONS
Base frequency: 100 MHz
Characterized comb spectrum: 30 MHz – 6 GHz
Tolerance: +/- 2.5 dB
Power supply: 9V PP3 (E-block) alkaline battery
Current consumption: 175 mA
Dimensions: 80 mm x 61 mm x 27 mm
Weight including battery: 76 g
توضیحات:
Type
noise
Other characteristics
portable, reference
