نام محصول:
نوار فلزی
نام انگلیسی:
Metal busbar Power Xpert FMX
برند:
Eaton
مشخصات:

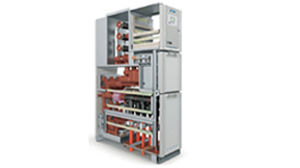

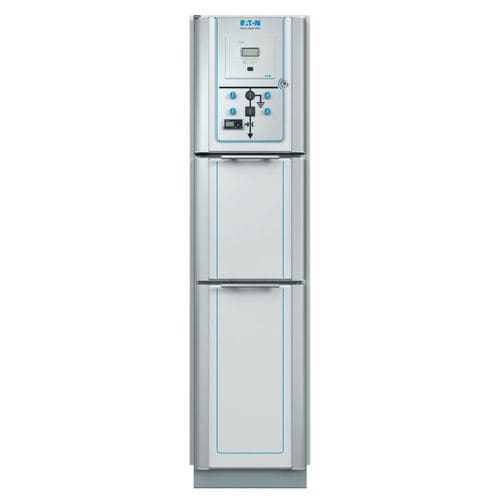

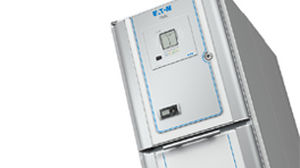

Power Xpert FMX is Eaton’s IEC single busbar medium voltage switchgear using solid and air insulation. The system provides reliable switching, protection, metering and distribution of electrical energy up to 24 kV and 2000 A. Power Xpert FMX consists of metal-enclosed modular compact panels of minimum 500 mm. The 12 and 24 kV versions are both accommodated in the same compact housing.
• Compact
• SF₆-free, environmentally friendly design
• High operational safety
• Maintenance free
• Full remote control
• Easy connection and testing of cables
• Tested according to IEC 62271-200
• Internal Arc Classification AFL 25kA – 1s
Power Xpert FMX includes a complete range up to 2000 A with metal-enclosed modular compact panels starting at 500 mm width. Both the 12 and 24 kV versions use the same compact housing.
Power Xpert FMX is ideal for application in main feeder stations and substations. The system can be fitted to specific customer requirement. Typical applications are commercial and government buildings, infrastructure projects and industry (e.g. the processing industry).
توضیحات:
Material
metal
Electrical characteristics
medium-voltage
Structure
modular
Protection level
insulated
Primary current
Min.: 0 AMax.: 2,000 A
