نام محصول:
نظارت بر شیشه دید
نام انگلیسی:

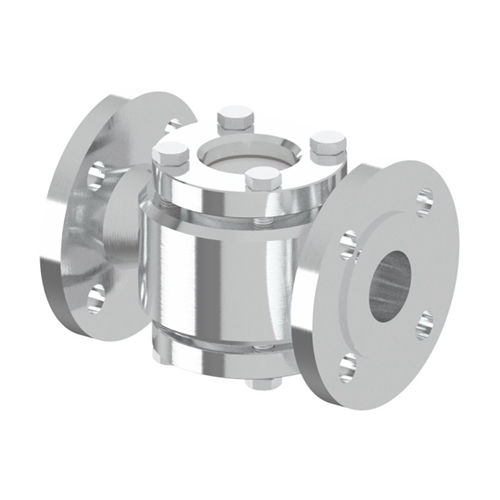

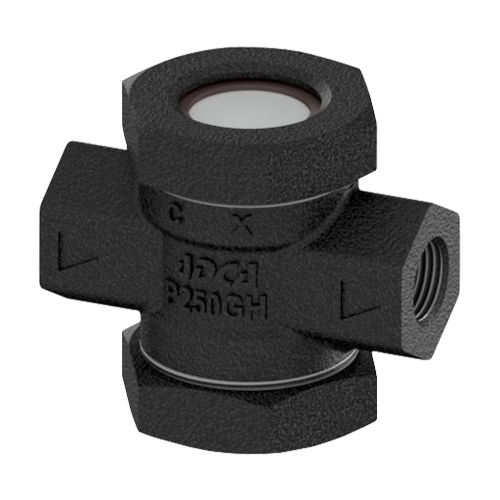

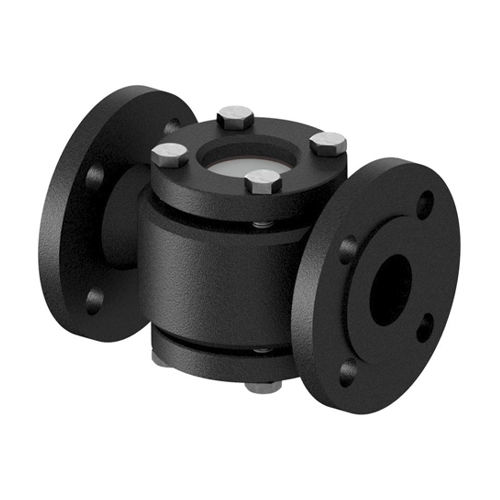

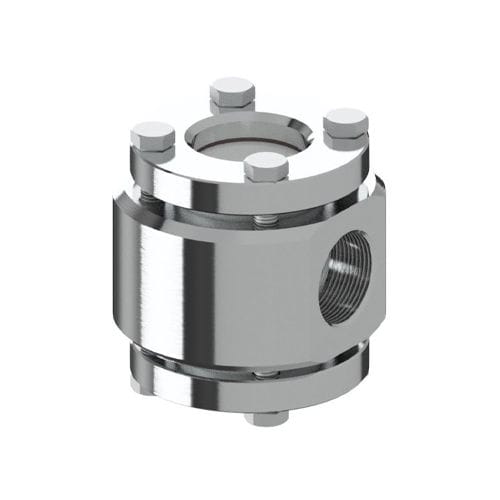

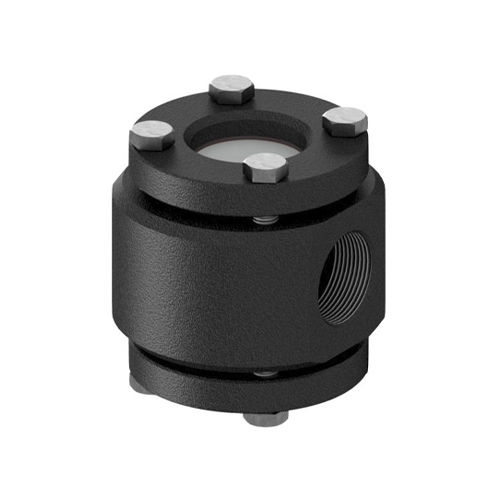

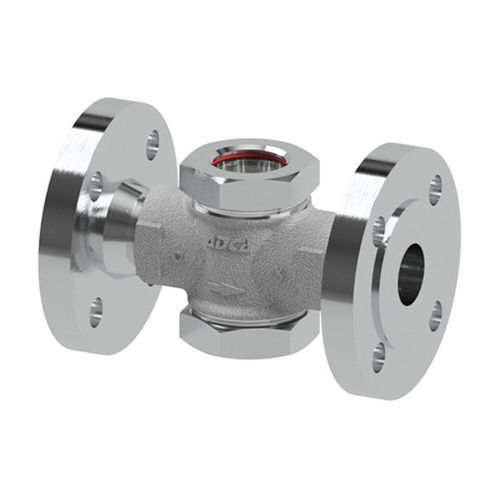

Monitoring sight glass DW40S / DW40SS
برند:
VALSTEAM ADCA Engineering S.A.
مشخصات:
The ADCA DW40 is a series of double window sight glasses specially designed for installation downstream of steam traps, to monitor their performance such as checking for live steam leakage or blockage. Such devices can also be used for monitoring flow conditions in other applications, particularly in pipelines with liquid medium.
Compact.
Double window design.
Borosilicate glass.
Mica shield discs for use with steam.
Condensate lines and others.
CONNECTIONS:
Female threaded ISO 7 Rp or NPT.
Flanged EN 1092-1 PN 40. DW40S 1/2″ to 1″
Flanged ASME B16.5 Class 150 or 300.
Horizontal or vertical installation.
See IMI – Installation and maintenance instructions.
توضیحات:
Specifications
monitoring, stainless steel, carbon steel, flange, threaded
DN
Max.: 50 mm(2 in)Min.: 15 mm(0.6 in)
Temperature
280 °C(536 °F)
Operating pressure
40 bar(580 psi)
