نام محصول:
نظارت بر شیشه دید
نام انگلیسی:

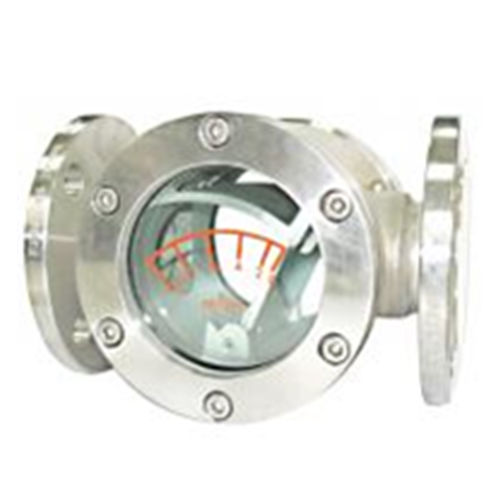

Monitoring sight glass AI.FS
برند:
ASIT ITALIA
مشخصات:
The flow sight glass was designed with or without spring paddle for easy observation of flowing fluid from LEFT to RIGHT or RIGHT to LEFT.
Service: Water treatment system, industrial flow system and double windows indication.
Material: Body – SS316, SS04, SS316L, SS304L and Duplex S.S-UNS J92205 on request only for without paddle type.
Paddle – SS316, Spring – SS316, Gauge – Tempered Glass, Gasket – Teflon, Gore-Tex,
Flange: SS316 and SS304 available
Connection Rating: JIS 10K, ANSI150, PN10 and PN16 available.
توضیحات:
Specifications
monitoring, stainless steel, tempered glass facing, flange
DN
50 mm(2 in)
Temperature
80 °C(176 °F)
Operating pressure
10 bar(145 psi)
