نام محصول:
موتور گشتاور 3 فاز

نام انگلیسی:
3-phase torque motor QTR 65 Series

برند:
Tecnotion

مشخصات:

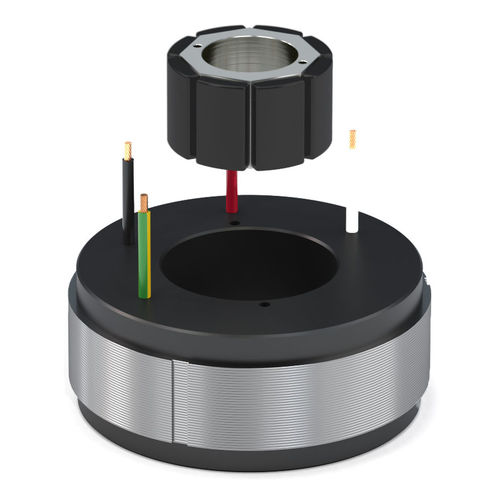

The QTR 65 is the smallest torque motor in the Tecnotion torque motor range. This motor is optimized for small and low voltage applications. With a 65mm outer- and 17mm inner diameter this motor offers unique opportunities for small applications.

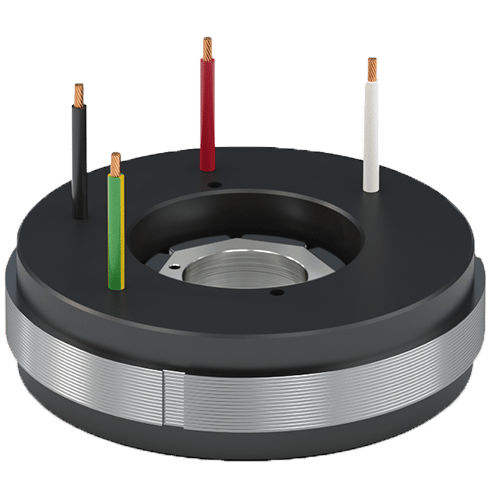

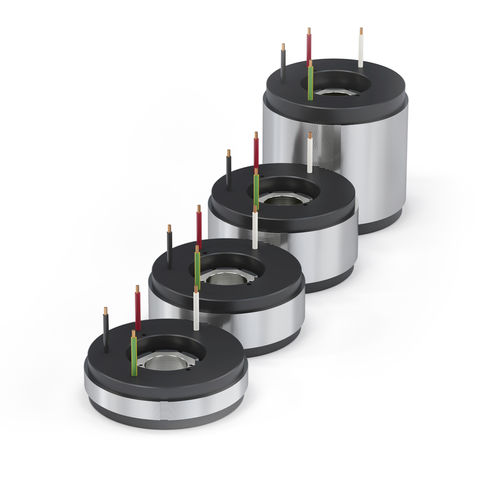

The 65 Series is available in four motor ‘heights’ or ‘sizes’, a 17, 25, 34, and 60 size motor. To provide maximum flexibility and integration the QTR 65 uses flying leads instead of a power cable. Check all advantages and features, for an explanation of torque motors.

توضیحات:
AC/DC
3-phase

Type
synchronous

Configuration
hollow-shaft, compact, frameless, small

Number of poles
8-pole

Applications
for robotics, for the semiconductor industry

Other characteristics
direct-drive, low-voltage

Power
53 W, 99 W, 138 W, 217 W(0.072 hp, 0.135 hp, 0.188 hp, 0.295 hp)

Intensity
4.86 A, 5.61 A, 8.65 A, 11.07 A

Torque
0.29 Nm, 0.66 Nm, 1.08 Nm, 2.31 Nm(0.21389 ft.lb, 0.48679 ft.lb, 0.79657 ft.lb, 1.70377 ft.lb)

Rotational speed
1,030 rpm, 2,840 rpm, 3,730 rpm, 6,130 rpm(6,471.68 rad.min-1, 17,844.25 rad.min-1, 23,436.28 rad.min-1, 38,515.93 rad.min-1)

Diameter
65 mm(2.56 in)
