نام محصول:
موتور گشتاور 3 فاز
نام انگلیسی:

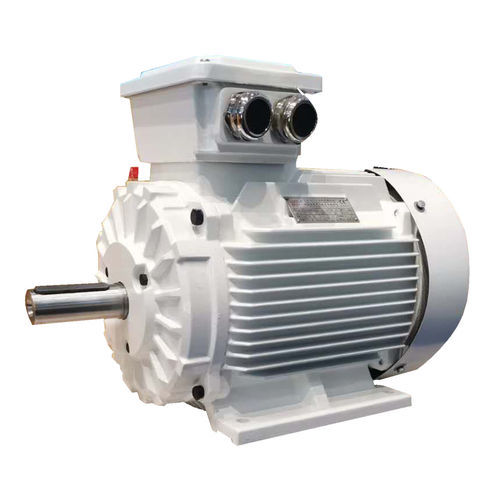

3-phase torque motor YE4 series
برند:
Dalian Dalmo Electric Motor Co. Ltd
مشخصات:
YE4 series ultra high efficiency TEFC 3-phase electric motor is designed and manufactured by our company. The efficiency conforms to grade 2 stipulated in GB186132-2020 , it also conforms to the recommednded values (IE4)in IEC60034-31 appendix A, efficiency grade : GB18613-2020(IE4).
Range of this series motor is 80-355,output and dimensions are in accordance of GB/T4772.1/IEC60072-1 and GB/T4772.2/IEC60072-2.
Motor character:
1. Terminal-box locate on top of the motor, but can also be arrangedon both sides of the motor.
2.For motors framesize 160 and above,thermo tester can be arranged on stator an dbearing, heat belt and greasing device are also available on request.
3.Terminal-box,frame, cover and fan cover are designed even more beautiful, and are much fit for lowering noise and ventilation.
4. Insulation class F,protection degree IP55, working duty S1, cooling method IC411.
5.Low noise, low vibration with reliable performance , .
6.High efficiency, energy conservation, safety and environment protection.
7. Suits for continuous working site such as blower, pump and tools.
توضیحات:
AC/DC
3-phase
Type
asynchronous
Protection class
IP54, IP55
Configuration
external rotor, TEFC, iron-core, compact
Efficiency classes
IE4
Other characteristics
low-noise, low-vibration
Power
Max.: 315 kW(428.281 hp)Min.: 0.75 kW(1.02 hp)
Intensity
54.2 AMax.: 545 AMin.: 1.6 A
Torque
2 Nm(1.47512 ft.lb)Max.: 2.3 Nm(1.69639 ft.lb)Min.: 1.6 Nm(1.1801 ft.lb)
Rotational speed
980 rpm(6,157.52 rad.min-1)Max.: 2,980 rpm(18,723.89 rad.min-1)Min.: 705 rpm(4,429.65 rad.min-1)
Diameter
Max.: 355 mm(13.98 in)Min.: 80 mm(3.15 in)
Operating temperature
25 °C(77 °F)Max.: 40 °C(104 °F)Min.: 15 °C(59 °F)
