نام محصول:

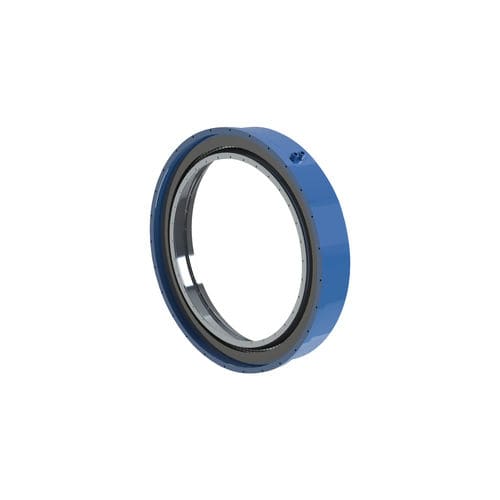

موتور گشتاور 3 فاز
نام انگلیسی:
3-phase torque motor Torque
برند:
CEDS DURADRIVE GmbH
مشخصات:
CEDS torque motors offer you special advantages:
Light and compact design
Very high torques can be represented
High speed constancy
High positioning accuracy
Low detent torque
Low rated speed
Big hollow shaft
Very quiet
Low inertia, therefore very dynamic
Very high force density
Long life span
Torque motors are characterized by a very compact design in combination with a very high torque at low speed. A high force density in relation to the installation space and a low cogging torque are further points that a torque motor fulfills.
CEDS DURADRIVE torque motors are designed to save space and have a high level of positioning accuracy. These motors are very often used instead of gear solutions and minimize wear and backlash during positioning.
توضیحات:
AC/DC
3-phase
Type
synchronous
Voltage
400 V, 380 V, 240 V, 5 V
Protection class
IP54, IP65, robust
Configuration
permanent magnet, hollow-shaft, external rotor, large, flat-body, compact
Number of poles
multipole
Cooling mechanism
liquid-cooled, water-cooled
Applications
for robotics, for military applications, for rotary tables, industrial, heavy-duty, for machine tools, for winches
Other characteristics
direct-drive, high-torque, high-precision, custom, low-speed, high-inertia, high-power, constant speed, with built-in encoder
Power
Min.: 0.001 kW(0.001 hp)Max.: 150 kW(203.943 hp)
Torque
Min.: 0.1 Nm(0.07376 ft.lb)Max.: 20,000 Nm(14,751.24299 ft.lb)
Rotational speed
Min.: 1 rpm(6.28 rad.min-1)Max.: 2,500 rpm(15,707.96 rad.min-1)
Diameter
Min.: 6 cm(2.36 in)Max.: 120 cm(47.24 in)
