نام محصول:
موتور گشتاور پر سرعت

نام انگلیسی:

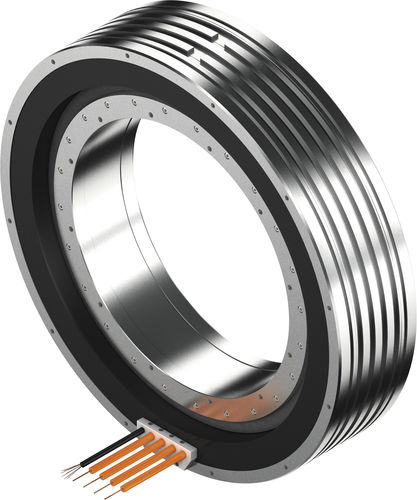

High-speed torque motor IM-2 series

برند:
HIWIN GmbH

مشخصات:
Torque motors IM-2:
The high-speed torque motors for the machine tool sector are ready-to-install motor elements consisting of stator and rotor. Thanks to the integrated cooling channels, the torque motor can be operated with liquid cooling. This means that no additional process heat is introduced into the machine and higher continuous torques can be achieved. The torque motors of the IM-2 series are designed for field-weakening operation. They thus achieve a significantly wider speed spectrum and are therefore perfect for combined axes for turning and milling operations.

توضیحات:
AC/DC
DC

Type
synchronous

Cooling mechanism
liquid-cooled

Applications
for machine tools

Other characteristics
high-torque, high-speed

Torque
Max.: 5,700 Nm(4,204.10425 ft.lb)Min.: 76 Nm(56.05472 ft.lb)

Diameter
Max.: 565 mm(22.24 in)Min.: 198 mm(7.8 in)
