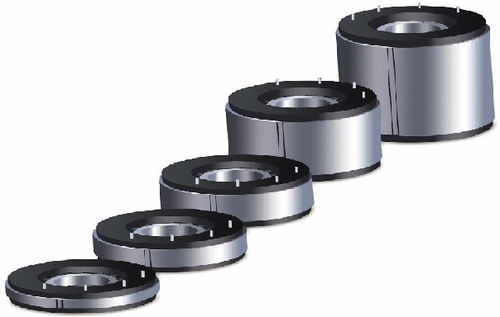

موتور گشتاور سه فاز – ITG Linear Motor – Three-phase torque motor TM78 Series

نام محصول:
موتور گشتاور سه فاز

نام انگلیسی:
Three-phase torque motor TM78 Series

برند:
ITG Linear Motor

مشخصات:
Unleash unparalleled torque and control with our Torque Motors.

Our Torque Motors provide unparalleled torque and control, enabling precise rotation and positioning in high-torque applications such as rotary tables and machine tooling.

• Smallest motors in our torque family

• Compact design with large hollow shaft

• Low voltage supported

• High dynamics and accuracy

• Optimal speed control

• TMSL-X is the slot-less torque motor with improved torque specs

توضیحات:
AC/DC
three-phase

Type
synchronous

Configuration
hollow-shaft, slotless, compact, small

Number of poles
12-pole

Applications
for machine tools, for rotary tables

Other characteristics
low-voltage, high-torque, with speed controller

Intensity
4.9 A, 6.3 A, 8.3 A, 10.5 A, 11 A

Torque
0.68 Nm, 1.66 Nm, 2.63 Nm, 5.29 Nm, 8.82 Nm(0.50154 ft.lb, 1.22435 ft.lb, 1.93979 ft.lb, 3.9017 ft.lb, 6.5053 ft.lb)

Rotational speed
220 rpm, 484 rpm, 1,296 rpm, 1,962 rpm, 2,200 rpm(1,382.3 rad.min-1, 3,041.06 rad.min-1, 8,143.01 rad.min-1, 12,327.61 rad.min-1, 13,823.01 rad.min-1)
