نام محصول:

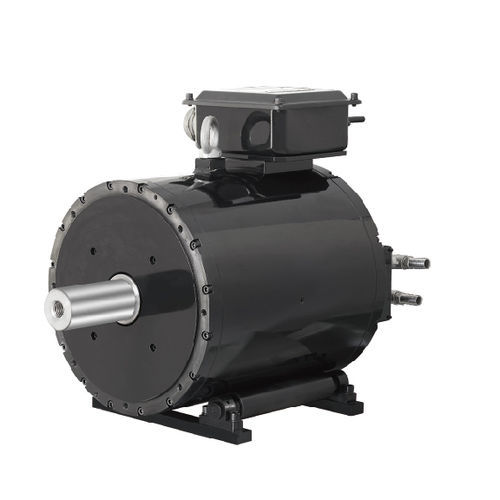

موتور گشتاور سه فاز
نام انگلیسی:
Three-phase torque motor EMT2
برند:
ESTUN Automation Co., Ltd.
مشخصات:
Different from the concept of traditional power frequency torque motor, direct drive torque motor refers to a synchronous motor with a torque ranging from hundreds to thousands to tens of thousands of nm, which can output power at a low speed of tens to hundreds of révolutions. At present, the général form is a three-phase permanent magnet synchronous motor with feedback components,
which is used with servo drivers. This kind of motor is usually directly connected with the load, which eliminates the transmission devices such as réduction gears, and can realize high rigid and efficient connection without wear and back clearance. Direct drive torque motor has the functions of low speed, high torque, continuous adjustable speed, speed, torque, position control, etc. The selection is based on the rated torque and maximum torque of the motor, without considering the power.
EXAMPLE OF USE:
I Extruder main drive
I Worm drive of die casting machine
I Film drawing machine traction roll drive
I Elastic roll, calender roll, press grinding roll and cooling roll
I Dynamic positioning processing, such as rotary table, timing conveyor belt
I Alternative hydraulic motor
I Paper machine roller drive
I Horizontal machine drive of continuous cargo conveyor belt (such as paper, textile, sheet métal)
I Wire drawing machine
I cutting machine
I Wire sawing machine
I Winding machine, winch (car), winding tension control
I Test system
I Packaging machine, printing
I Machine tool
I Woodworking machine tool
I Tablet press (chemical, pharmaceutical)
توضیحات:
AC/DC
three-phase
Type
synchronous
Voltage
400 V
Configuration
permanent magnet, hollow-shaft
Cooling mechanism
water-cooled
Other characteristics
custom
Power
30 kW(40.789 hp)
Rotational speed
Max.: 1,000 rpm(6,283.19 rad.min-1)Min.: 100 rpm(628.32 rad.min-1)
