نام محصول:
موتور گشتاور دی سی
نام انگلیسی:

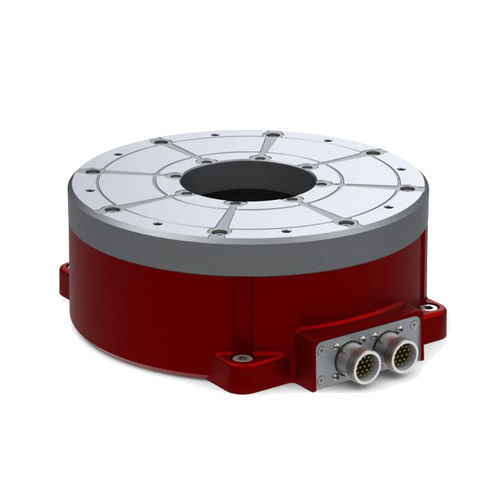

DC torque motor iTM 180 UND 240
برند:
isel Germany
مشخصات:
TORQUE MOTOR iTM 240
-Energy efficient due to low losses✓
-Completely ready for use in a ready-to-install housing✓
-Hollow shafts for feed through✓
FEATURES:
-Energy-efficient due to low losses
-Completely ready for use in a ready-to-assemble housing
-Hollow shaft for the media feed-through
-Convection cooling
-integrated measuring system
-Tested according to the EC regulation 73/23/ECC, and to the standards EN50178 and EN60204
ADVANTAGES OFFERED BY THE TORQUE MOTOR:
-High torques from speed 0✓
-Reduced assembly space, since there is no gearbox required✓
-Clearance-free, robust, maintenance-free and smooth-running✓
OPTIONS:
-Absolute measuring system equipped with BISS-C protocol✓
-Clamping plate made of die-cast aluminium, Ø 250 mm and Ø 500 mm✓
AREAS OF APPLICATION:
-Swivel axes✓
-Rotary table✓
-Measuring technology✓
-Positioning✓
توضیحات:
AC/DC
DC
Type
synchronous
Voltage
320 V
Protection class
IP40, maintenance-free, robust
Configuration
hollow-shaft
Other characteristics
high-torque
Power
475 W(0.646 hp)
Intensity
1.8 A
Torque
75 Nm(55.31716 ft.lb)
Operating temperature
Max.: 80 °C(176 °F)Min.: -5 °C(23 °F)
