نام محصول:
موتور گشتاور دی سی
نام انگلیسی:

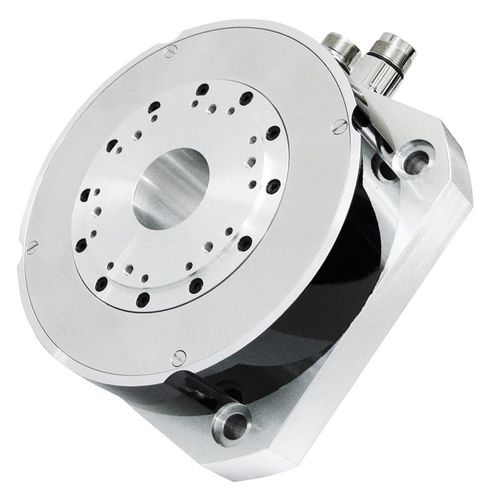

DC torque motor KTY-F series
برند:
GEORGII KOBOLD
مشخصات:
Our new KTY series of housed synchronous torque motors not only sets a new benchmark with regard to maximum drive system torque and stiffness, but they are also extremely compact. The KTY series is a useful alternative to geared motors in any application. The torques are sensibly graduated from 6.5 to 270 Nm, which means that Direct-Drive Technology is finally available in this entire torque class!
KTY-F Torque motors are intended for applications that require a direct-drive solution in the smallest of spaces. With a extremely flat design, the KTY-F torque motors are especially suitable for space-saving solutions. The KTY-F series is likewise available in 3 different sizes – each with 3 stack lengths. The series effectively covers the torque range from 6.5 to 50 Nm.
توضیحات:
AC/DC
DC
Type
synchronous
Voltage
230 V
Protection class
IP54
Configuration
permanent magnet, hollow-shaft, compact
Number of poles
multipole
Other characteristics
direct-drive
Intensity
Max.: 48 AMin.: 1.2 A
Torque
Max.: 50 Nm(36.87811 ft.lb)Min.: 6.5 Nm(4.79415 ft.lb)
Rotational speed
250 rpm, 400 rpm, 500 rpm(1,570.8 rad.min-1, 2,513.27 rad.min-1, 3,141.59 rad.min-1)
