نام محصول:
موتور گشتاور دی سی
نام انگلیسی:

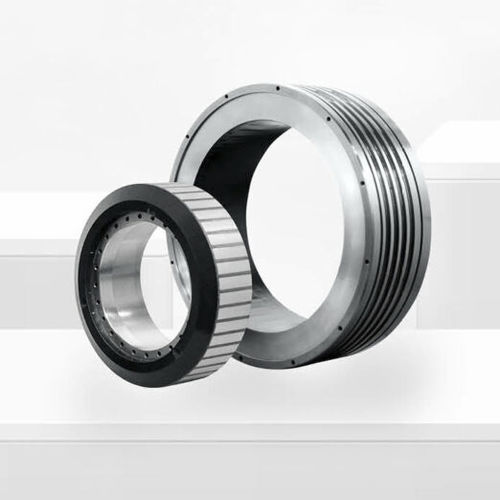

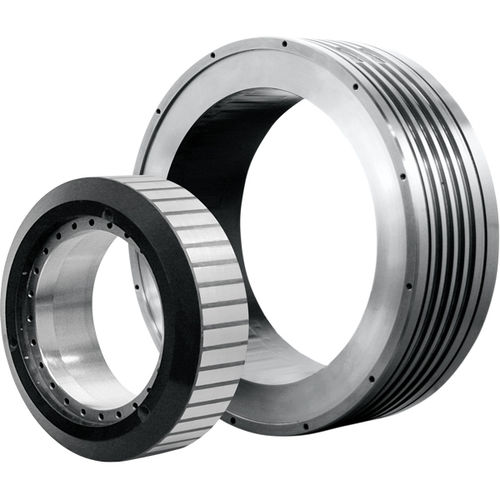

DC torque motor TMKi
برند:
ETEL S.A.
مشخصات:
The TMKi torque motor range introduces a revolutionary design that redefines the capabilities of torque motors, pushing speed levels to unprecedented heights while maintaining robust performance.
TMKi family is a continuous improvement of the well-known TMK motors, which stand out with their advanced electromagnetic design, enabling them to achieve speed levels previously thought unattainable for torque motors. With a maximum speed range up to 8 times higher than conventional torque motors of similar size, TMKi motors offer both increased continuous and peak torque, setting a new standard for high-speed high-torque applications. This groundbreaking design not only expands the boundaries of “high speed” in the torque motor realm but also enhances motor robustness, thanks to fully encapsulated magnets and water cooling channels.
Furthermore, TMKi motors are compatible with the mechanical interface of the TMB series, facilitating seamless integration into existing systems while ensuring precise thermal control with the IMTHP module.
Characteristics
Here are the key features of our models:
24 standard models available
More torque and more speed
High motor robustness
Watercooling channels
Very high peak torque
Nickel coating on rotor ring and cage to prevent corrosion
توضیحات:
AC/DC
DC
Type
synchronous
Voltage
600 V
Protection class
robust
Configuration
permanent magnet, hollow-shaft
Cooling mechanism
water-cooled
Other characteristics
direct-drive, high-speed
Power
Max.: 95,800 W(130.252 hp)Min.: 1,340 W(1.822 hp)
Torque
Max.: 20,600 Nm(15,193.78028 ft.lb)Min.: 129 Nm(95.14552 ft.lb)
Rotational speed
Max.: 5,200 rpm(32,672.56 rad.min-1)Min.: 573 rpm(3,600.27 rad.min-1)
Diameter
Max.: 1,050 mm(41.34 in)Min.: 198 mm(7.8 in)
