نام محصول:
موتور گشتاور دی سی
نام انگلیسی:

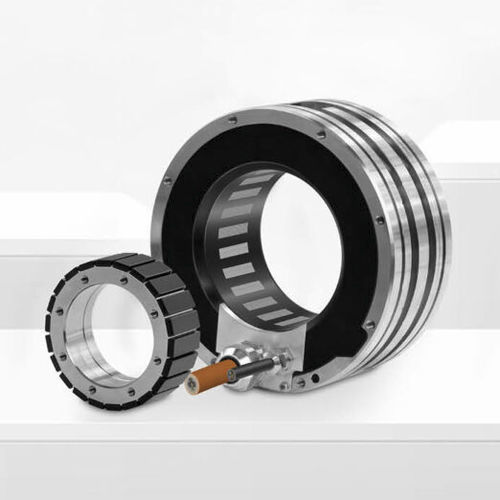

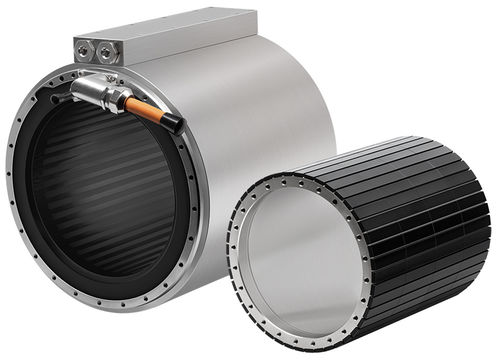

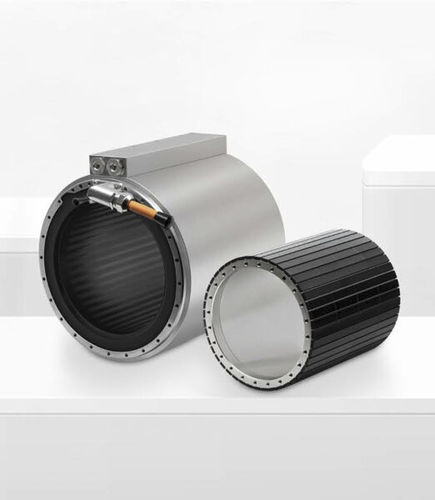

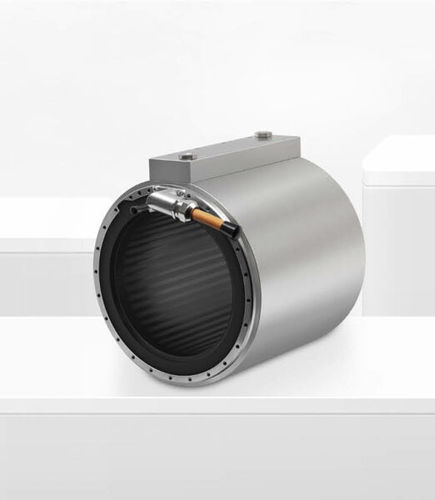

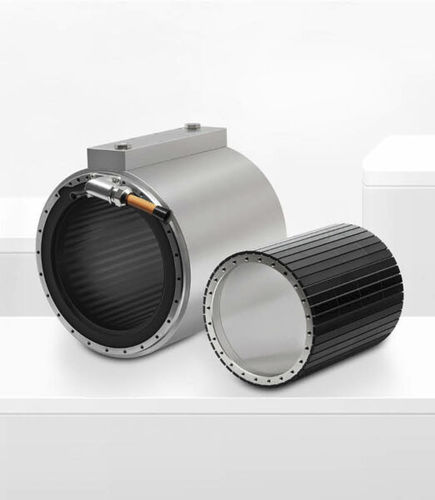

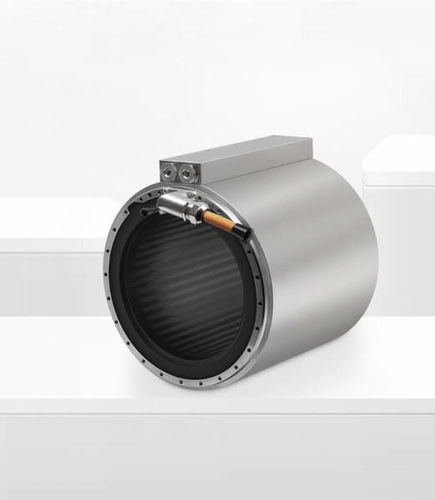

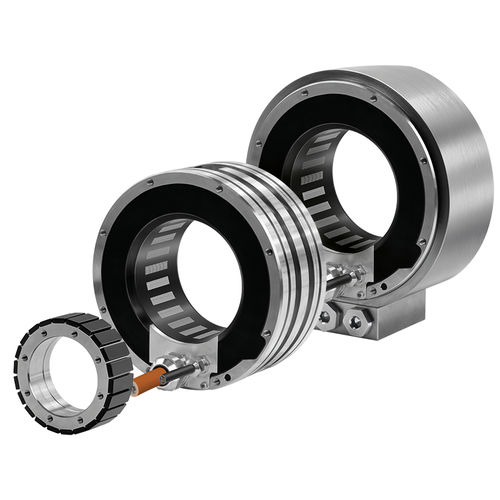

DC torque motor TMB+
برند:
ETEL S.A.
مشخصات:
The TMB+ motor is a further development of the well-known TMB torque motor series that promises more power and new functions without compromising compatibility with existing motors.
This motor represents a significant advancement in torque motor technology, boasting up to a 20% increase in torque density and a remarkable 30% reduction in power losses compared to its predecessors, all within the same compact footprint. With its extended speed range, TMB+ not only enhances machine performance but also facilitates the integration of new processes into existing machines without requiring design modifications.
This advancement democratizes direct drive technology, expanding its applicability while ensuring top-notch quality, reliability, and reduced cost of ownership.
Characteristics
Here are the key features of our models:
More than 60 standard sizes available
Active length up to 200 mm
Four different windings per diameter
Open or closed cooling variants
Nickel coating on stator and rotor
Water cooling channels
توضیحات:
AC/DC
DC
Type
synchronous
Configuration
hollow-shaft, compact
Cooling mechanism
water-cooled
Other characteristics
direct-drive, performance
Power
Max.: 228,000 W(309.994 hp)Min.: 633 W(0.861 hp)
Torque
Max.: 42,900 Nm(31,641.4162 ft.lb)Min.: 21.6 Nm(15.93134 ft.lb)
Rotational speed
Max.: 4,590 rpm(28,839.82 rad.min-1)Min.: 143 rpm(898.5 rad.min-1)
Diameter
Max.: 4,590 mm(180.71 in)Min.: 143 mm(5.63 in)
