نام محصول:
موتور گشتاور دی سی
نام انگلیسی:

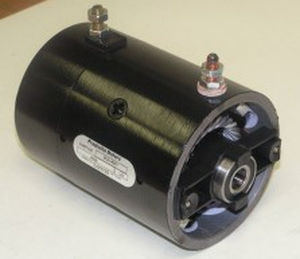

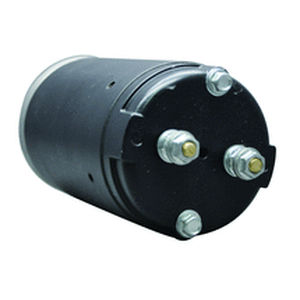

DC torque motor Prestolite
برند:
AMETEK Dynamic Fluid Solutions
مشخصات:
AMETEK Prestolite Motors is recognized worldwide as a leader in high quality motors used in hydraulic pumps, winches, snowplows, scissor lifts, coffee grinders, pumps, mixers and many other industrial and commercial applications. It offers an extensive product line backed by outstanding customer service, global engineering and manufacturing. AMETEK Prestolite Motors is a subsidiary of AMETEK, Inc., a leading global manufacturer of electric motors, electronic instrument, specialty metals and a wide assortment of electromechanical components.
In existence for nearly a century, the Prestolite Motors brand has been synonymous with outstanding reliability and performance. In 2000. The Prestolite Motors business was acquired by AMETEK, as it was a natural fit with their global presence and sense of value.
Whatever the application, be it traction, pump, or mechanical, AMETEK Prestolite Motors can engineer a motor to meet your specific requirements. With coordinating design centers in the United States, China and Brazil, we can provide the reliable designs that our customers have come to respect.
Applications for these motors include but not limited to:
• Agriculture machinery
• Fork lift
• Industrial lifts
• Ambulance gurney lift
• Gear drive
• Starter
• Boom lifts
• Pump motors
• Power pack
• Controlled motion
• High power small package medical applications
• Salt spreader
• Conveyors
• High torque starter
• Traction
• Door opener
• Hydraulic applications
• Machine tool
• Lift trucks
• Industrial drive
توضیحات:
AC/DC
DC
Type
brushed
Voltage
48 V, 24 V, 36 V, 12 V
Configuration
small
Applications
agricultural, for machine tools, industrial, for medical applications, for lifting applications, for pump, for military applications, for winches, linear actuator, for automatic doors, traction, for hydraulic applications, for conveyors
Other characteristics
performance
Power
Max.: 750 W(1.02 hp)Min.: 10 W(0.014 hp)
Torque
Max.: 21.69 Nm(15.99772 ft.lb)Min.: 0.35 Nm(0.25815 ft.lb)
Rotational speed
Max.: 5,500 rpm(34,557.52 rad.min-1)Min.: 0 rpm(0 rad.min-1)
Diameter
Max.: 127 mm(5 in)Min.: 62 mm(2.44 in)
