نام محصول:
موتور هیدرولیک ژر
نام انگلیسی:

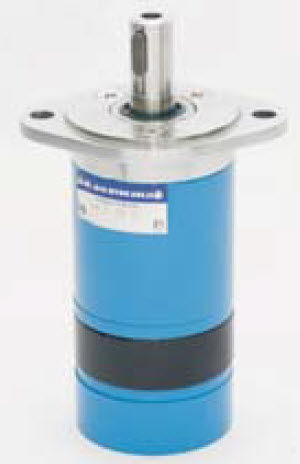

Gerotor hydraulic motor MM, MLHM series
برند:
M+S Hydraulic PLC
مشخصات:
This gerotor set comes with a spool valve integrated with an output shaft, supported by hydrodynamic bearings. In addition to this, the MM series of products also ensures a distribution valve that is integrated into the output shaft.
Next, the cardan shaft rotates the distribution valve and mechanical energy from the generator set to the output shaft.
توضیحات:
Technology
gerotor
Pressure
Max.: 140 bar(2,031 psi)Min.: 90 bar(1,305 psi)
Rotational speed
Max.: 1,950 rpm(12,252.21 rad.min-1)Min.: 400 rpm(2,513.27 rad.min-1)
Torque
Max.: 45 Nm(33.19 ft.lb)Min.: 11 Nm(8.11 ft.lb)
Displacement
Max.: 49 cm³(1.66 US fl oz)Min.: 1 cm³(0.03 US fl oz)
