نام محصول:
موتور هیدرولیک پیستون محوری
نام انگلیسی:

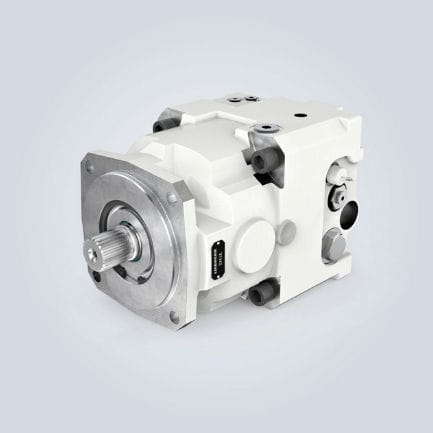

Axial piston hydraulic motor DMVA series
برند:
Liebherr Machines Bulle SA
مشخصات:
The DMVA motor with a swashplate design can be employed as a single or double motor. With an unrivaled adjustability of up to 22° it can be adapted flexibly to a broad conversion range according to its operational requirements. It also features an impressive high performance and efficiency.
توضیحات:
Technology
axial piston
Other characteristics
high-pressure, variable-displacement, open circuit, closed circuit, flange-mount
Pressure
450 bar(6,527 psi)Max.: 500 bar(7,252 psi)Min.: 0 bar(0 psi)
Rotational speed
Max.: 3,350 rpm(21,048.67 rad.min-1)Min.: 2,400 rpm(15,079.64 rad.min-1)
Torque
Max.: 2,538 Nm(1,871.93 ft.lb)Min.: 737 Nm(543.58 ft.lb)
Displacement
Max.: 371.2 cm³(12.55 US fl oz)Min.: 107.7 cm³(3.64 US fl oz)
